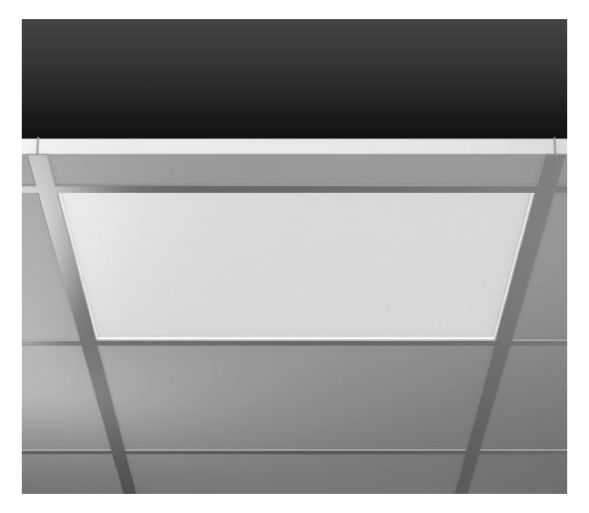

Highly efficient LED ceiling insert light for high hygienic requirements. Particularly suitable for use in the healthcare and industrial sectors. Housing made of powder-coated sheet steel. Frameless appearance in the modular ceiling thanks to the extra narrow luminaire frame. Luminaire frame made of powder-coated aluminum. Diffuser with a smooth surface on the room side for low sensitivity to dirt and easy cleaning. Diffuser made of durable polycarbonate (PC), microprismatic. LED backlight technology for homogeneous illumination of the entire light-emitting surface. Highest light quality for the clinical detection of cyanosis thanks to the correct color spectrum, CRI > 90 and a Cyanosis Observation Index (COI)
| Property | Value |
| Max. System power: | 41 W |
| Rated luminous flux according to IEC 62722-2-1: | 5000 lm |
| Suitable for number of lamps: | 1 |
| Length: | 622 mm |
| Width: | 622 mm |
| Protection rating (IP): | IP65 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | aluminum |
| Color temperature: | 4000 K |
| Impact resistance: | IK06 |
| Color rendering index CRI: | 90-100 |
| Suitable for ceiling mounting: | yes |
| Rated service life L80/B10 at 25 °C: | 60000 h |
| Suitable for wall mounting: | no |
| Voltage type: | AC/DC |
| With motion detector: | no |
| Beam angle: | extremely wide beam >80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 40 °C |
| Socket: | other |
| Connection type: | plug-in terminal |
| With operating device: | yes |
| Cover material: | structured plastic |
| Light distributor: | other |
| Installation height/depth: | 160 mm |
| Without dimming function: | no |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | yes |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | no |
| Suitable for emergency lighting: | no |
| Design of the grid: | without |
| Covering of the luminaire with thermal insulation material possible: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With Air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | yes |
| Dimming mains voltage modulation: | no |
| Dimming phase cut: | no |
| Dimming phase leading: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on the operating device: | yes |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Suitable for lamp power: | 41 W |
| Luminaire luminous efficacy: | 122 lm/W |
| Power factor: | 0.99 |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 5 |
| Conductor cross-section: | 1.50 mm² |
Features
HAB
Parledo 41W-940
Manufacturer
HAN
312604.002.76
GTIN
4051859747352
Covering the luminaire with thermal insulation material possible
No
Connection type
Plug-in terminal
Type of wiring
Suitable for through wiring
Execution of the grid
Without
Rated lifetime L80/B10 at 25 °C
60000 hours
Rated luminous flux according to IEC 62722-2-1
5000lm
Rated ambient temperature according to IEC62722-2-1
-20 to 40 °C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
Yes
Width
622 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
Yes
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation height/depth
160 mm
Color temperature
4000K
Color rendering index CRI
90-100
Version
Other
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for lamp power
41 W
Suitable for number of lamps
1
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Suitable for wall mounting
No
Housing color
White
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Power factor
0.99
Conductor cross-section
1.50 mm²
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
122lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distributor
Other
Light distribution
Symmetrical
Length
622 mm
Max. system performance
41 W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
220 to 240 V
Without dimming function
No
Number of poles
5
Impact resistance
IK06
IP protection)
IP65
Protection class (NEMA)
Other
Protection class
I
Voltage type
AC/DC
Cover material
Plastic structured
Housing material
Aluminum
