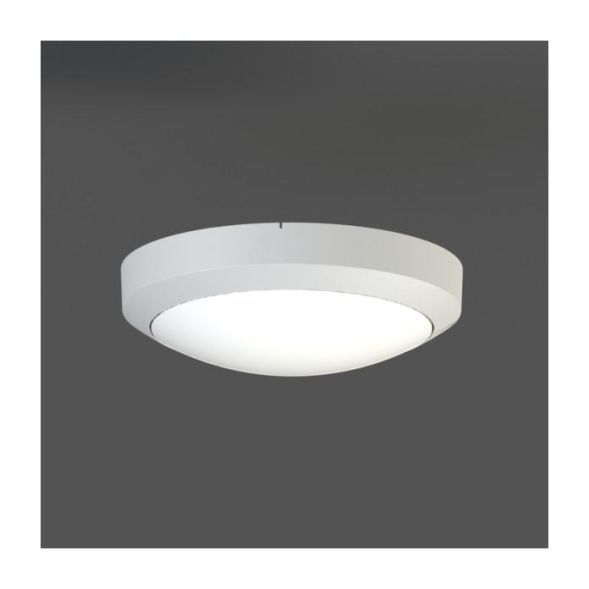

RZB 581639.002 Rounded Maxi 21.6W 30 LED wall / ceiling light

Brand:RZB
SKU:532288
RZB 581639.002 Rounded Maxi 21.6W 30 LED wall / ceiling light
HAB
Manufacturer
HAN
GTIN
In stock
€248.78
11
Shipping information
International shipping DHL
Рассчитываем стоимость доставки...
DPD
Рассчитываем стоимость доставки...
UPS
Рассчитываем стоимость доставки...
Description

Elegant appearance without visible screws thanks to bayonet lock with snap lock (optional) as theft protection. LED: Use of smart, cost-effective LED modules for mains voltage with high system light output for energy-saving operation. Seawater-resistant coating. Replaceable LED module. Second cable entry for mains forwarding. Housing made of corrosion-resistant die-cast aluminum, powder-coated, robust design. Fastening points outside the lamp compartment, safe installation through consistent error avoidance. Fast installation: tolerance compensation for drill holes. Generous cable management space allows wall outlet even in the middle of the luminaire. Electrical connection via plug-in terminals. Diffuser attachment using mounting fixation. Can also be fitted with lamps for E27 sockets. Versions for escape route lighting with central battery feed available. Housing made of corrosion-resistant die-cast aluminum for outdoor use, powder-coated. Diffuser ball cap made of opal glass. With mounting fixation. Screwless installation of the diffuser via bayonet lock with snap lock. Fastening outside the sealed area with hole tolerance compensation. Mains connection 2x 3x 1.5 mm. Light source (mains voltage LED module) included in delivery. Energy efficiency class A+

>no
Property Value
Max. System power: 19 W
Rated luminous flux according to IEC 62722-2-1: 1250 lm
Suitable for number of lamps: 1
Height/depth: 120 mm
Protection rating (IP): IP65
Protection class: I
Luminaire with limited surface temperature 'D-mark': no
Nominal voltage: 220 to 240 V
Housing color: white
Housing material: Aluminum
Color temperature: 3000 K
Impact resistance: IK07
Color rendering index CRI: 80-89
Suitable for ceiling mounting: yes
Rated service life L80/B10 at 25 °C: 50000 h
Suitable for wall mounting: yes
Outer diameter: 400 mm
Voltage type: AC
With motion detector: no
Beam angle: extremely wide beam >80°
With light source: yes
Light source: LED not replaceable
Rated ambient temperature according to IEC62722-2-1: -20 to 40 °C
Socket: other
Connection type: Plug-in terminal
With operating device: yes
Cover material: opal glass
Light distributor: without
Without dimming function: yes
Light emission: direct
Light distribution: symmetrical
With light sensor: no
Operating device: LED operating device, current-controlled
Suitable for recessed mounting: no
Light color: white
Suitable for computer workstations in accordance with EN 12464-1: no
Suitable for light strip configuration: no
Suitable for Pendant suspension: no
Suitable for surface mounting: yes
Suitable for emergency lighting: no
Design of the grid: without
Covering of the lamp with thermal insulation material possible: yes
DMX dimming: no
DSI dimming: no
With air slots: no
Dimming LineSwitch: no
Dimming potentiometer (device integrated): no
Dimming 0-10 V: no
Dimming GPRS:
Dimming 1-10 V: no
Dimming manufacturer-specific: no
Dimming DALI: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Dimming depending on operating device: no
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 960 °C - 30 s
Suitable for lamp power: 19 W
Luminaire luminous efficacy: 66 lm/W
Type of wiring: suitable for through wiring
Number of poles: 3
Conductor cross-section: 1.50 mm²
