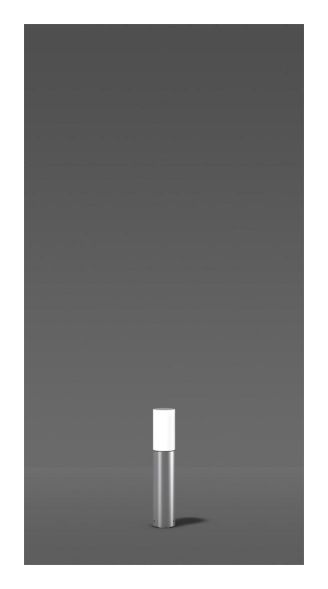

The unobtrusive, slim and well-proportioned shape fits easily into any environment. The innovative housing concept protects the light source and operating devices from all weather influences. Seawater-resistant coating. A sophisticated ventilation system prevents condensation. The highly efficient LED solution saves energy effectively and for a long time while providing balanced brightness. Resistant plastic cylinders made of UV-stabilized polyethylene also allow use in environments with increased mechanical stress. 115 mm bollard standpipe made of corrosion-resistant aluminum for outdoor use, powder-coated. With fully enclosed stainless steel mounting base. Corrosion-free luminaire insert made of dual compound injection molding with integrated sealing elastomer. Cover made of opal glass, satin matt, hand-blown. Operating device installed. With diaphragm valve as standard to prevent condensation. Junction box on the base for connecting max. 2x 3x 2.5 mm as through-wiring. Energy efficiency class A++
| Property | Value |
| Housing color: | Silver |
| Impact resistance: | IK05 |
| With light source: | yes |
| Protection class: | I |
| Light source: | LED not replaceable |
| Nominal voltage: | 176 to 264 V |
| Suitable for number of light sources: | 1 |
| Diameter: | 115 mm |
| Socket: | without |
| Material of the housing: | Aluminium |
| Protection class (IP): | IP65 |
| Type of luminaire: | Bollard light |
| Operating device: | LED operating device current-controlled |
| Rated luminous flux according to IEC 62722-2-1: | 860 lm |
| Color temperature: | 3000 K |
| Color rendering index CRI: | 80-89 |
| Light color: | white |
| With operating device: | yes |
| With motion detector: | no |
| With light sensor: | no |
| Voltage type: | AC/DC |
| With base plate: | no |
| Surface: | powder-coated |
| LED nominal current at constant current: | 38 to 57 mA |
| Light distributor: | without |
| Protection class (NEMA): | other |
| Suitable for lamp power: | 10 W |
| Max. System power: | 10 W |
| Power factor: | 0.54 |
| Height/depth: | 600 mm |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 3 |
| Conductor cross-section: | 2.50 mm² |
| Connection type: | Plug-in terminal |
