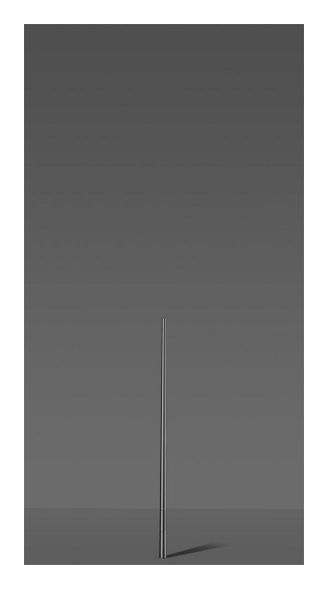

Ground mast for series: steel masts Conical-round light mast made of steel, with ground longitudinal weld seam, in accordance with DIN EN 40. Hot-dip galvanized in accordance with DIN EN ISO 1461. With flush-fitted mast door 85mm x 400mm, door lock VA, triangular, 10mm edge length, M10 (other locks on request). Equipment bridge with two sliding nuts M6 and earthing thread M8. Cable hole 50mm x 150mm (UKK 500mm below ground). Visible color: anthracite metallic Mounting type: floor installation ET: 800mm : 129mm H: 4500mm Tube: 129mm Spigot: 76mm AL: 0mm
| Property | Value |
| Mast spigot diameter: | 76 mm |
| Light point height: | 4.50 m |
| Design: | Bottle/cone |
| Surface: | powder-coated |
| With base plate: | no |
| Boom: | without |
| Material: | steel |
| Offset shape: | no |
| Foot end diameter: | 129 mm |
| Wall thickness: | 3 mm |
| Tapered: | yes |
| Color: | anthracite |
| Total length: | 5.30 m |
Features
With base plate
No
HAB
D129 H5300 D76 anthracite
Manufacturer
HAN
611898.0031
GTIN
4051859081449
Version
Bottle/Cone
Color
Overall length
5.30m
Surface
Powder coated
Material
Steel
