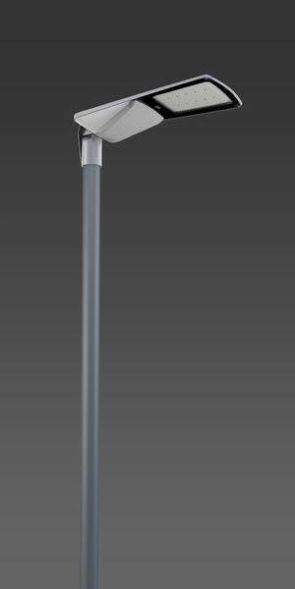

Function-oriented mast-mounted and mast-top luminaire in a modern design. Housing made of corrosion-resistant die-cast aluminum, powder-coated to be seawater-resistant. Mast top with integrated cable routing and stainless steel screws. Equipped as standard with a diaphragm valve to prevent condensation. Cover made of clear toughened safety glass (ESG). Asymmetrical light distribution. Luminaires for mast top ø 76 mm (with optional reducer also suitable for mast top ø 60 mm). Tool-free maintenance/replacement thanks to Eccentric Lock system with disconnect plug and Hybrid Lock system. Complete with connecting cable 4 x 1.0 mm², length 8 m.
| Property | Value |
| Length: | 700 mm |
| Width: | 340 mm |
| Height/depth: | 100 mm |
| Suitable for number of bulbs: | 1 |
| Max. System power: | 66 W |
| Rated luminous flux according to IEC 62722-2-1: | 10000 lm |
| Color temperature: | 4000 K |
| Suitable for spigot size: | 76 mm |
| Nominal voltage: | 220 to 240 V |
| Housing color: | Silver |
| Operating device: | LED operating device, current-controlled |
| With Light source: | yes |
| Light source: | LED not replaceable |
| Socket: | without |
| Protection rating (IP): | IP66 |
| Protection class: | II |
| Impact resistance: | IK08 |
| Mounting type: | Attachment/approach |
| Color rendering index CRI: | 70-79 |
| Voltage type: | AC |
| With control gear: | yes |
| Adjustable optics: | no |
| Cover material: | transparent glass |
| Housing material: | aluminum |
| Remote control: | without |
| Cable length: | 8 m |
| Constant luminous flux control: | no |
| Light color: | white |
| With connection cable: | yes |
| With radio control: | no |
| With program-controlled light control: | no |
| Surface: | powder-coated |
| LED nominal current at constant current: | 275 to 300 mA |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | yes |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Rated service life L80/B10 at 25 °C: | 100000 h |
| Protection class (NEMA): | other |
| Light distributor: | without |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 50 °C |
| Suitable for lamp power: | 66 W |
| Luminaire luminous efficacy: | 152 lm/W |
| Power factor: | 0.99 |
| Type of wiring: | Termination |
| Number of poles: | 2 |
| Conductor cross-section: | 2.50 mm² |
| Connection type: | Screw terminal |
Features
HAB
Mingata 66W-4000K P+C 1xZ
Manufacturer
HAN
612183.004.1.Z1
GTIN
4051859676942
Connection type
Screw terminal
Type of wiring
Diploma
Rated lifetime L80/B10 at 25 °C
100000 hours
Rated luminous flux according to IEC 62722-2-1
10000lm
Rated ambient temperature according to IEC62722-2-1
-20 to 50 °C
Operating device
LED control gear current controlled
Width
340 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
4000K
Color rendering index CRI
70-79
Version
Without
Remote control
Without
Suitable for lamp power
66W
Suitable for number of lamps
1
Suitable for braid size
76 mm
Housing color
Silver
Height/Depth
100 mm
Cable length
8m
Constant luminous flux control
No
LED nominal current at constant current
275 to 300 mA
Power factor
0.99
Conductor cross-section
2.50 mm²
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
152lm/W
Lamps
LED not replaceable
Light color
White
Light distributor
Without
Length
700 mm
Max. system performance
66W
With connection cable
Yes
With operating device
Yes
With radio control
No
With light source
Yes
With program-controlled lighting control
No
Mounting type
Essay/Approach
Nominal voltage
220 to 240 V
Surface
Powder coated
Without dimming function
No
Number of poles
2
Impact resistance
IK08
IP protection)
IP66
Protection class (NEMA)
Other
Protection class
II
Voltage type
AC
Cover material
Glass transparent
Housing material
Aluminum
