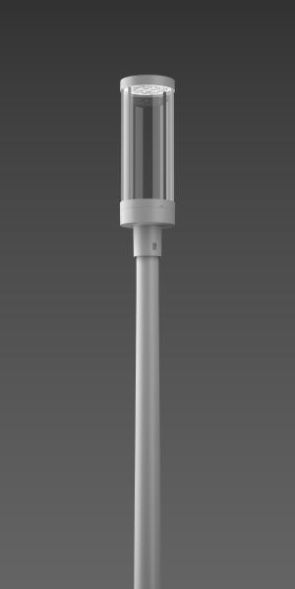

Mast top light in classic lines with modern LED technology. Housing made of corrosion-resistant die-cast aluminum, powder-coated to be seawater-resistant. With stainless steel screws. With diaphragm valve as standard to prevent condensation. Clear glass cylinder. Multichip LED with high-performance refractor optics. Asymmetrical light distribution. Mast top for spigot ø 76 mm. With stainless steel screws. DALI-2 (D4i) control gear. 1 x Zhaga base (Book 18) at the top. Pre-assembled connection cable 2 x 0.75 mm², length 6 m. Please order reducer for mast spigot D 60 mm separately. Please order optional add-on roof separately.
| Feature | Value |
| Height/depth: | 572 mm |
| Diameter: | 187 mm |
| Suitable for number of bulbs: | 1 |
| Max. System power: | 34 W |
| Rated luminous flux according to IEC 62722-2-1: | 1550 lm |
| Color temperature: | 3000 K |
| Suitable for spigot size: | 76 mm |
| Nominal voltage: | 220 to 240 V |
| Housing color: | Silver |
| Operating device: | LED operating device, current-controlled |
| With Light source: | yes |
| Light source: | LED not replaceable |
| Socket: | without |
| Protection rating (IP): | IP66 |
| Protection class: | II |
| Impact resistance: | IK06 |
| Mounting type: | Attachment |
| Color rendering index CRI: | 70-79 |
| Voltage type: | AC |
| With operating device: | yes |
| Adjustable optics: | no |
| Cover material: | transparent glass |
| Housing material: | aluminum |
| Remote control: | without |
| Constant luminous flux control: | no |
| Light color: | white |
| With Connection cable: | yes |
| With radio control: | no |
| With program-controlled light control: | no |
| Surface: | powder-coated |
| LED nominal current at constant current: | 58 to 64 mA |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | yes |
| DMX dimming: | no |
| DSI dimming: | no |
| Potentiometer dimming (integrated in the device): | no |
| GPRS dimming: | no |
| LineSwitch dimming: | no |
| Manufacturer-specific dimming: | no |
| Mains voltage modulation dimming: | no |
| Dimming phase control: | no |
| Dimming phase control: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Rated service life L80/B10 at 25 °C: | 100000 h |
| Protection class (NEMA): | other |
| Light distributor: | without |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 40 °C |
| Suitable for lamp power: | 14 to 34 W |
| Luminaire luminous efficacy: | 111 lm/W |
| Power factor: | 0.99 |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 4 |
| Connection type: | other |
Features
HAB
Lupalo Scandia 66 9W-3000K
Manufacturer
HAN
612269.004.Z1
GTIN
4051859679363
Connection type
Other
Type of wiring
Suitable for through wiring
Rated lifetime L80/B10 at 25 °C
100000 hours
Rated luminous flux according to IEC 62722-2-1
1550lm
Rated ambient temperature according to IEC62722-2-1
-20 to 40 °C
Operating device
LED control gear current controlled
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Diameter
187 mm
Color temperature
3000K
Color rendering index CRI
70-79
Version
Without
Remote control
Without
Suitable for lamp power
14 to 34 W
Suitable for number of lamps
1
Suitable for braid size
76 mm
Housing color
Silver
Height/Depth
572 mm
Constant luminous flux control
No
LED nominal current at constant current
58 to 64 mA
Power factor
0.99
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
111lm/W
Lamps
LED not replaceable
Light color
White
Light distributor
Without
Max. system performance
34W
With connection cable
Yes
With operating device
Yes
With radio control
No
With light source
Yes
With program-controlled lighting control
No
Mounting type
Essay
Nominal voltage
220 to 240 V
Surface
Powder coated
Without dimming function
No
Number of poles
4
Impact resistance
IK06
IP protection)
IP66
Protection class (NEMA)
Other
Protection class
II
Voltage type
AC
Cover material
Glass transparent
Housing material
Aluminum
