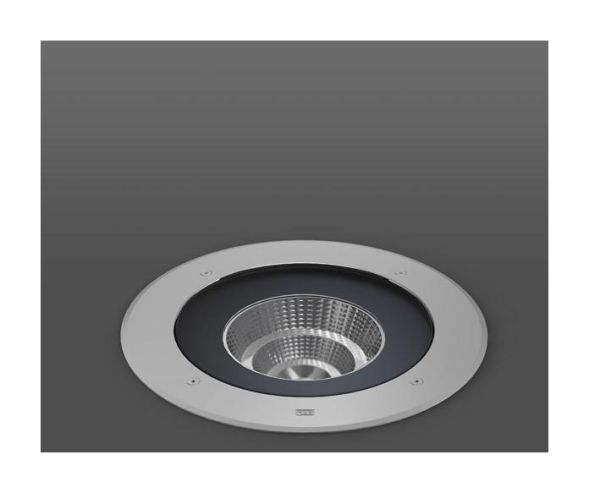

Recessed floor light for pedestrian areas, maximum load 2000 kg. Optionally circular or square cover made of V4A stainless steel with flush ESG glazing. Choice of 5 different light distributions: 24°, 62° and asymmetrical with fixed beam direction and 10° and 28° with adjustable reflector. Housing made of corrosion-resistant die-cast aluminum. Flexible connecting cable H07-RN8F suitable for IP 68 quick connector or casting housing for connection without housing intervention. Housing-integrated vapor seal against condensation. 3 different installation housings for underground cables or empty pipe cabling to choose from. Anti-slip glass R12 or anti-glare slats as accessories on request. Housing made of corrosion-resistant die-cast aluminum for outdoor use, powder-coated. Circular end cover and screws made of V4A stainless steel. Flush glazing safety glass (ESG). Maximum pressure load 2000 kg. Free-form mirror optics. With connecting cable H07-RN8F 1000 mm. With diaphragm valve as standard to prevent condensation. Control gear installed. Light source (high-performance LED) included in delivery. Energy efficiency class A+
| Property | Value |
| Nominal voltage: | 220 to 240 V |
| Socket: | without |
| With light source: | yes |
| With control gear: | yes |
| Installation diameter: | 225 mm |
| Housing color: | stainless steel |
| Control gear: | LED control gear, current-controlled |
| Outer diameter: | 245 mm |
| Light source: | LED not replaceable |
| Suitable for number of light sources: | 1 |
| Protection type (IP): | IP68 |
| Protection class: | I |
| Electrical connection with plug-in system: | no |
| Cover material: | transparent glass |
| Adjustable: | no |
| Light distribution: | symmetrical |
| Drive-over: | no |
| Rated luminous flux according to IEC 62722-2-1: | 2200 lm |
| Color temperature: | 4000 K |
| Color rendering index CRI: | 80-89 |
| Light color: | white |
| Max. load: | 2000 kg |
| Voltage type: | AC |
| LED nominal current at constant current: | 117 to 127 mA |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | without |
| Beam angle: | wide beam 41-80° |
| Suitable for lamp power: | 28 W |
| Max. System power: | 28 W |
| Height/depth: | 2 mm |
| Installation height/depth: | 145 mm |
| Type of wiring: | suitable for through-wiring |
| Number of poles: | 3 |
| Conductor cross-section: | 1.50 mm² |
| Connection type: | other |
