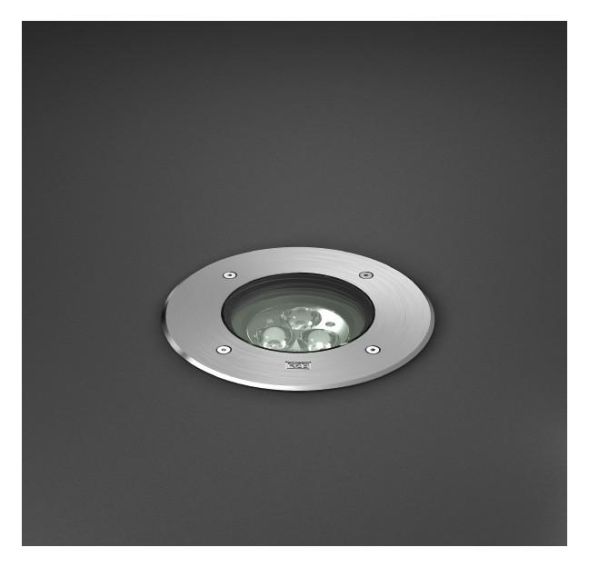

Compact LED recessed floor light for accent lighting. Housing made of epoxy resin duroplast, stainless steel, aluminum. Circular cover panel V4A ground. Housing interior sealed to IP 68 even during installation. Integrated Vapour-Seal condensate protection. With connecting cable H07RN8-F, L 500 mm. The use of a built-in housing is required, please order separately.
| Property | Value |
| Nominal voltage: | 220 to 240 V |
| Socket: | without |
| With light source: | yes |
| With operating device: | yes |
| Installation diameter: | 125 mm |
| Housing color: | stainless steel |
| Operating device: | LED operating device, current-controlled |
| Outer diameter: | 130 mm |
| Light source: | LED not replaceable |
| Suitable for number of light sources: | 1 |
| Protection type (IP): | IP68 |
| Protection class: | II |
| Electrical connection with plug-in system: | no |
| Cover material: | Transparent glass |
| Adjustable: | no |
| Light distribution: | symmetrical |
| Drive-over: | no |
| Rated luminous flux according to IEC 62722-2-1: | 300 lm |
| Color temperature: | 2700 K |
| Color rendering index CRI: | 80-89 |
| Light color: | white |
| Max. load: | 2000 kg |
| Voltage type: | AC/DC |
| LED nominal current at constant current: | 17 to 18 mA |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Beam angle: | extremely wide beam >80° |
| Suitable for lamp power: | 4 W |
| Max. system power: | 4 W |
| Power factor: | 0.60 |
| Height/depth: | 2 mm |
| Installation height/depth: | 390 mm |
| Type of wiring: | suitable for through-wiring |
| Connection type: | other |
Features
HAB
Terra ES 130 4W-2700K
Manufacturer
HAN
641340.000.2
GTIN
4051859704072
Connection type
Other
Type of wiring
Suitable for through wiring
Outer diameter
130 mm
Rated luminous flux according to IEC 62722-2-1
300lm
Operating device
LED control gear current controlled
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation diameter
125 mm
Installation height/depth
390 mm
Electrical connection with plug-in system
No
Color temperature
2700K
Color rendering index CRI
80-89
Version
Without
Suitable for lamp power
4W
Suitable for number of lamps
1
Housing color
Stainless steel
Height/Depth
2 mm
Adjustable
No
LED nominal current at constant current
17 to 18 mA
Power factor
0.60
Lamps
LED not replaceable
Light color
White
Light distribution
Symmetrical
Max. load
2000 kg
Max. system performance
4W
With operating device
Yes
With light source
Yes
Nominal voltage
220 to 240 V
Without dimming function
Yes
IP protection)
IP68
Protection class
II
Voltage type
AC/DC
Cover material
Glass transparent
Rollover
No
