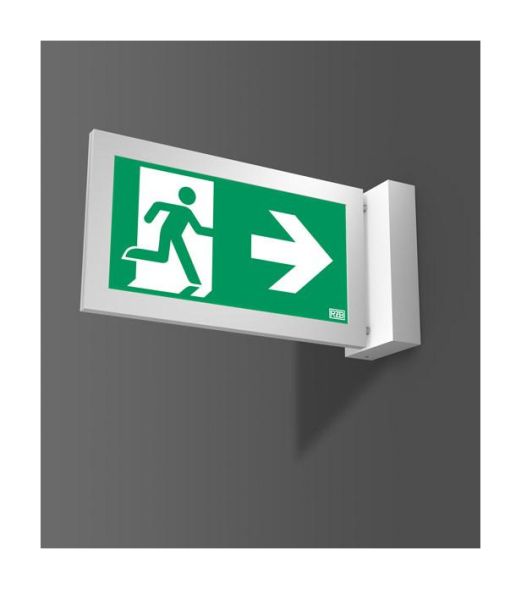

Extremely flat escape sign light with highly efficient LED technology. One-piece, milled and brushed aluminum frame, high-quality anodized. Specially calculated thermal management. LED service life 50,000 hours. Very high luminance greater than 900 cd/m2. Perfect uniformity of illumination in the pictogram thanks to display screen with patented MicroLens technology. Housing made of aluminum, matt silver anodized. Display screen made of plastic with patented microlens technology. With escape sign for escape route marking on two sides. Display at a distance thanks to spacer tubes. Single battery system with integrated self-test and feedback to the Multidigit and MWEB systems. Light source (LED) included in delivery. Energy efficiency class A++
| Property | Value |
| Housing color: | Aluminium |
| Protection rating (IP): | IP40 |
| Protection class: | I |
| Voltage type: | AC |
| Detection range: | 30 m |
| Color temperature: | 5700 K |
| Length: | 400 mm |
| Width: | 100 mm |
| Height/Depth: | 200 mm |
| Max. System performance: | 7.10 W |
| Battery type: | NiCd |
| Nominal operating time: | 3 h |
| Operating device: | EVG |
| Light source: | LED not replaceable |
| Impact resistance: | IK03 |
| Socket: | without |
| Nominal voltage: | 220 to 240 V |
| With remote switch connection: | no |
| Cover material: | opal plastic |
| With light source: | yes |
| Monitoring device: | Monitoring module (centrally supplied system) |
| Mounting type: | Wall mounting |
| Housing material: | aluminum |
| Feed-in: | decentralized (single battery) |
| Function: | Escape route marking |
| With pictogram: | yes |
| Suitable for number of lamps: | 1 |
| Number of lamp heads: | 1 |
| Light distributor: | Diffuser lens/optics/panel |
| Protection class (NEMA): | other |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | 25 °C |
| Wiring type: | suitable for through wiring |
| Number of poles: | 6 |
| Conductor cross-section: | 2.50 mm² |
| Connection type: | Plug connection |
