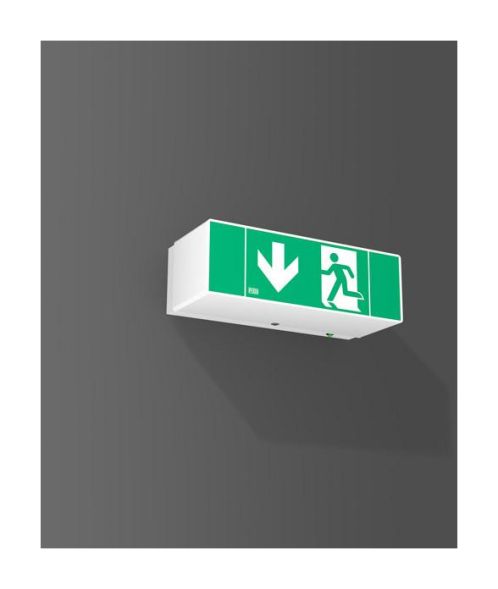

Very compact design. Unobtrusive design. Universally applicable, can be used as a ceiling or wall-mounted version. Reliable and long-lasting LED technology. Easy installation. Automatic self-test as standard. 4 films for escape route marking included. Powder-coated metal bracket. Opal plastic cover. Set of films with escape signs for escape route marking included. Single battery system with integrated self-test and feedback via Dali bus exclusively to the RZB monitoring system 985405. Light source (LED) included in delivery. Energy efficiency class A++
| Property | Value |
| Housing color: | white |
| Protection rating (IP): | IP40 |
| Protection class: | I |
| Voltage type: | AC |
| Detection range: | 14 m |
| Color temperature: | 6500 K |
| Length: | 230 mm |
| Width: | 103 mm |
| Height/Depth: | 76 mm |
| Max. System performance: | 4.80 W |
| Battery type: | NiMh |
| Nominal operating time: | 3 h |
| Operating device: | EVG |
| Light source: | LED not replaceable |
| Impact resistance: | IK03 |
| Socket: | without |
| Nominal voltage: | 220 to 240 V |
| With remote switch connection: | no |
| Cover material: | opal plastic |
| With light source: | yes |
| Monitoring device: | Monitoring module (centrally supplied system) |
| Mounting type: | Wall mounting/ceiling mounting |
| Housing material: | steel |
| Suitable for marking type: | other |
| Feed-in: | decentralized (single battery) |
| Function: | Escape route marking |
| With pictogram: | yes |
| Suitable for number of lamps: | 2 |
| Number of lamp heads: | 1 |
| LED nominal current at constant current: | 16 to 17 mA |
| Light distributor: | without |
| Protection class (NEMA): | other |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | 25 °C |
| Type of wiring: | Termination |
| Number of poles: | 6 |
| Conductor cross-section: | 2.50 mm² |
| Connection type: | Plug connection |
Features
HAB
2x1,1W 230x103x76 Dali Bus
Manufacturer
HAN
672188.002.07
GTIN
4051859165521
Connection type
Plug connection
Type of wiring
Diploma
Rated ambient temperature according to IEC62722-2-1
25°C
Operating device
Electronic ballast
Width
103 mm
Color temperature
6500K
Version
Without
Function
Escape route marking
Suitable for number of lamps
2
Housing color
White
Height/Depth
76 mm
LED nominal current at constant current
16 to 17 mA
Conductor cross-section
2.50 mm²
Luminaire with limited surface temperature D-mark
No
Lamps
LED not replaceable
Light distributor
Without
Length
230 mm
Max. system performance
4.80W
With light source
Yes
Mounting type
Wall mounting/ceiling mounting
Nominal voltage
220 to 240 V
Number of poles
6
Impact resistance
IK03
IP protection)
IP40
Protection class (NEMA)
Other
Protection class
I
Voltage type
AC
Cover material
Plastic opal
Housing material
Steel
