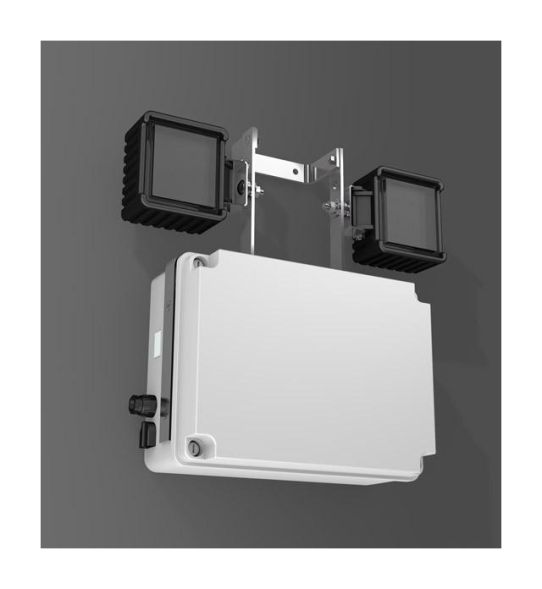

Protection class IP 54, dust and splash-proof. Robust design. Suitable for high rooms. Ideal for portable safety lighting. Automatic self-test as standard. Long-lasting, low-maintenance LED technology. Maintenance-free lead battery. Housing made of gray plastic (polycarbonate). Spotlight heads can be swiveled to illuminate escape routes or areas. Self-monitoring (auto-test) with diagnostics and control programs for charging and consumer functions. With carrying handle, suitable for mobile use or for permanent installation. LED lamps and Pb batteries included.
| Property | Value |
| Housing color: | gray |
| Protection type (IP): | IP54 |
| Protection class: | I |
| Voltage type: | AC |
| Color temperature: | 6500 K |
| Length: | 395 mm |
| Width: | 128 mm |
| Height/Depth: | 470 mm |
| Max. System performance: | 0.10 W |
| Battery type: | Lead |
| Nominal operating time: | 1 h |
| Luminous flux in standby mode: | 2400 lm |
| Light source: | LED not replaceable |
| Impact resistance: | IK03 |
| Socket: | without |
| Nominal voltage: | 230 V |
| With remote switch connection: | no |
| Cover material: | transparent glass |
| With light source: | yes |
| Monitoring device: | automatic self-test |
| Mounting type: | Wall mounting/ceiling mounting |
| Housing material: | plastic |
| Feed-in: | decentralized (single battery) |
| Function: | Escape route lighting |
| With pictogram: | no |
| Suitable for number of lamps: | 2 |
| Number of lamp heads: | 2 |
| Light distributor: | without |
| Protection class (NEMA): | other |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | 5 to 35 °C |
| Type of wiring: | suitable for through wiring |
| Connection type: | Connection cable with system plug |
Features
HAB
2x18W 395x470x128 Stest B1h
Manufacturer
HAN
672196.009
GTIN
4051859169505
Connection type
Connecting cable with system plug
Type of wiring
Suitable for through wiring
Rated ambient temperature according to IEC62722-2-1
5 to 35 °C
Width
128 mm
Color temperature
6500K
Version
Without
Function
Escape route lighting
Suitable for number of lamps
2
Housing color
Gray
Height/Depth
470 mm
Luminaire with limited surface temperature D-mark
No
Lamps
LED not replaceable
Light distributor
Without
Length
395 mm
Max. system performance
0.10W
With light source
Yes
Mounting type
Wall mounting/ceiling mounting
Nominal voltage
230V
Impact resistance
IK03
IP protection)
IP54
Protection class (NEMA)
Other
Protection class
I
Voltage type
AC
Cover material
Glass transparent
Housing material
Plastic
