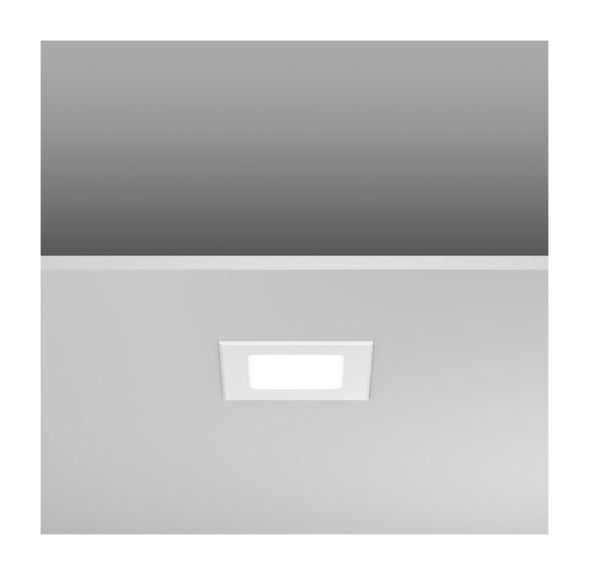

Design continuity with general lighting. We offer a comprehensive product range in the field of safety lighting and general lighting. This means we can offer our customers integrated solutions for all areas of application, depending on the building project. Large luminaire spacing for escape route lighting. Very low maintenance costs thanks to automatic self-test. Super-flat LED recessed downlight. Light guide and diffuser made of plastic made of non-yellowing PMMA. LED service life 50,000 hours (L70, B10). Simple spring fastening for tool-free installation. Suitable for direct covering with thermal insulation material (does not apply to diameter D 495 mm). Separate device box with plug connection. Die-cast aluminum housing, powder-coated. Light guide and plastic cover made of non-yellowing plastic (PMMA). Cover made of opal matt plastic. Ceiling fastening with spring system. Emergency light module including NiMh battery in separate control gear housing. Control gear (LED converter) external via plug connection. With connecting cable between light and LED converter 300 mm. Single battery system with integrated self-test. Light source (LED) included in delivery. Energy efficiency class A+
| Property | Value |
| Housing color: | white |
| Protection rating (IP): | IP54 |
| Protection class: | I |
| Voltage type: | AC |
| Color temperature: | 4000 K |
| Length: | 110 mm |
| Width: | 110 mm |
| Height/Depth: | 3 mm |
| Max. System performance: | 7.20 W |
| Battery type: | NiMh |
| Nominal operating time: | 3 h |
| Rated luminous flux according to IEC 62722-2-1: | 380 lm |
| Luminous flux in standby mode: | 330 lm |
| Operating device: | LED operating device, current-controlled |
| Light source: | LED not replaceable |
| Impact resistance: | IK03 |
| Socket: | without |
| Nominal voltage: | 200 to 240 V |
| With remote switch connection: | no |
| Cover material: | opal plastic |
| Installation width: | 96 mm |
| With light source: | yes |
| Installation length: | 96 mm |
| Monitoring device: | automatic self-test |
| Mounting type: | built-in |
| Housing material: | aluminium |
| Suitable for type of marking: | other |
| Feed-in: | decentralized (single battery) |
| Function: | escape route lighting |
| With pictogram: | no |
| Suitable for number of lamps: | 1 |
| Number of lamp heads: | 1 |
| LED nominal current at constant current: | 30 to 36 mA |
| Light distributor: | without |
| Protection class (NEMA): | other |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | 5 to 35 °C |
| Power factor: | 0.50 |
| Installation height/depth: | 170 mm |
| Type of wiring: | Termination |
| Number of poles: | 4 |
| Conductor cross-section: | 2.50 mm² |
| Connection type: | other |
