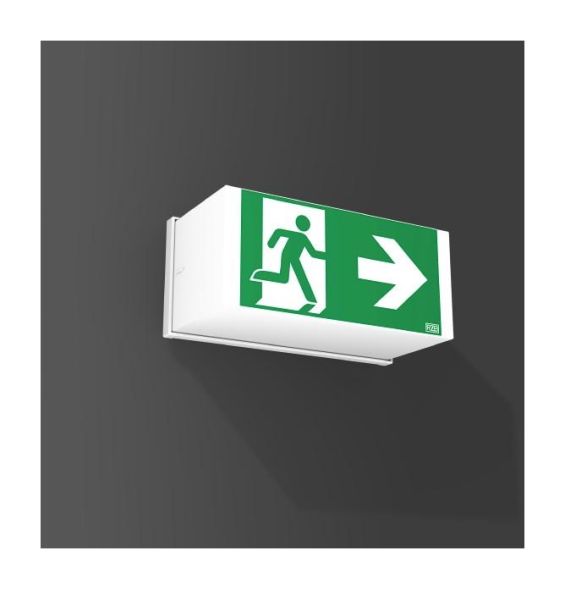

Lights for escape route marking. Powder-coated metal fitting. Opal plastic diffuser (polycarbonate). 4 films for escape route marking included (according to ISO 7010). Operating device suitable for direct current, suitable for central emergency power supply.
| Property | Value |
| Housing color: | white |
| Protection rating (IP): | IP54 |
| Protection class: | I |
| Type of voltage: | AC/DC |
| Detection range: | 21 m |
| Color temperature: | 4000 K |
| Length: | 274 mm |
| Width: | 125 mm |
| Height/Depth: | 139 mm |
| Max. System performance: | 3.20 W |
| Battery type: | other |
| Operating device: | LED operating device, current-controlled |
| Light source: | LED not replaceable |
| Impact resistance: | IK03 |
| Socket: | without |
| Nominal voltage: | 220 to 240 V |
| With remote switch connection: | no |
| Cover material: | Opal plastic |
| With light source: | yes |
| Monitoring device: | without |
| Mounting type: | Wall mounting/ceiling mounting |
| Housing material: | Aluminium |
| Suitable for marking type: | other |
| Feed-in: | central (central battery) |
| Function: | Escape route marking |
| With pictogram: | yes |
| Suitable for number of lamps: | 1 |
| Number of lamp heads: | 1 |
| LED nominal current at constant current: | 13 to 15 mA |
| Light distributor: | without |
| Protection class (NEMA): | other |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | 25 °C |
| Power factor: | 0.55 |
| Type of wiring: | Termination |
| Number of poles: | 3 |
| Conductor cross-section: | 2.50 mm² |
| Connection type: | Plug connection |
Features
HAB
Multivariable 4000K IP54 274x125x139mm
Manufacturer
HAN
672247.002.1
GTIN
4051859489757
Connection type
Plug connection
Type of wiring
Diploma
Rated ambient temperature according to IEC62722-2-1
25°C
Operating device
LED control gear current controlled
Width
125 mm
Color temperature
4000K
Version
Without
Function
Escape route marking
Suitable for number of lamps
1
Housing color
White
Height/Depth
139 mm
LED nominal current at constant current
13 to 15 mA
Power factor
0.55
Conductor cross-section
2.50 mm²
Luminaire with limited surface temperature D-mark
No
Lamps
LED not replaceable
Light distributor
Without
Length
274 mm
Max. system performance
3.20W
With light source
Yes
Mounting type
Wall mounting/ceiling mounting
Nominal voltage
220 to 240 V
Number of poles
3
Impact resistance
IK03
IP protection)
IP54
Protection class (NEMA)
Other
Protection class
I
Voltage type
AC/DC
Cover material
Plastic opal
Housing material
Aluminum
