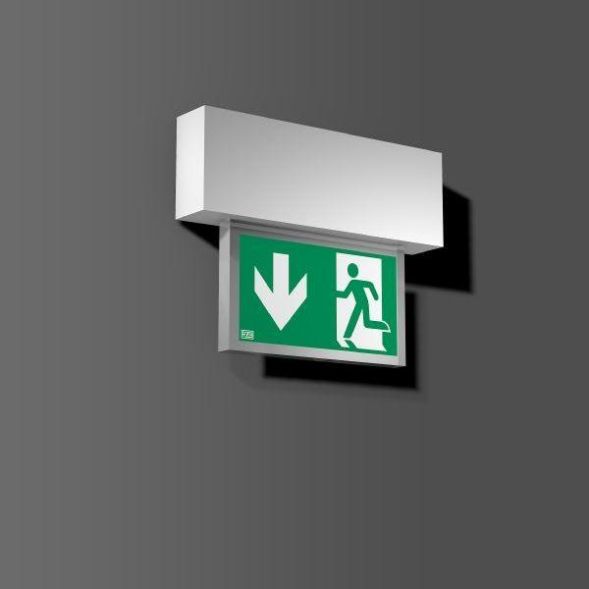

Light for escape route marking. Housing made of anodized or powder-coated extruded aluminum profile. Highly transparent plastic display panel with escape sign on one side. Integrated operating devices. Single battery system with automatic self-test. Specify symbol number for escape sign when ordering!
| Property | Value |
| Housing color: | Aluminum |
| Protection type (IP): | IP40 |
| Protection class: | I |
| Voltage type: | AC |
| Detection range: | 14 m |
| Color temperature: | 4000 K |
| Length: | 233 mm |
| Width: | 44 mm |
| Height/depth: | 180 mm |
| Battery type: | NiMh |
| Nominal operating time: | 8 h |
| Operating device: | EVG |
| Light source: | LED not replaceable |
| Impact resistance: | IK03 |
| Socket: | without |
| Nominal voltage: | 220 to 240 V |
| With remote switch connection: | no |
| Cover material: | transparent plastic |
| With light source: | yes |
| Monitoring device: | automatic self-test |
| Mounting type: | Wall mounting |
| Housing material: | aluminum |
| Suitable for marking type: | Sticker |
| Feed: | decentralized (single battery) |
| Function: | Escape route marking |
| With pictogram: | yes |
| Suitable for number of lamps: | 1 |
| Number of lamp heads: | 1 |
| LED nominal current at constant current: | 20 to 21 mA |
| Light distributor: | without |
| Protection class (NEMA): | other |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | 25 °C |
| Type of wiring: | Termination |
| Number of poles: | 4 |
| Conductor cross-section: | 1.50 mm² |
| Connection type: | Plug connection |
Features
HAB
Halyxx 2,4W-4000K
Manufacturer
HAN
672457.004.1
GTIN
4051859532354
Connection type
Plug connection
Type of wiring
Diploma
Rated ambient temperature according to IEC62722-2-1
25°C
Operating device
Electronic ballast
Width
44 mm
Color temperature
4000K
Version
Without
Function
Escape route marking
Suitable for number of lamps
1
Housing color
Aluminum
Height/Depth
180 mm
LED nominal current at constant current
20 to 21 mA
Conductor cross-section
1.50 mm²
Luminaire with limited surface temperature D-mark
No
Lamps
LED not replaceable
Light distributor
Without
Length
233 mm
With light source
Yes
Mounting type
Wall mounting
Nominal voltage
220 to 240 V
Number of poles
4
Impact resistance
IK03
IP protection)
IP40
Protection class (NEMA)
Other
Protection class
I
Voltage type
AC
Cover material
Plastic transparent
Housing material
Aluminum
