Round recessed downlight. For escape route lighting. Plastic housing (polycarbonate). With plastic lenses for area and escape route lighting. Suitable for ceiling mounting and ceiling recessing. Operating device suitable for direct current, suitable for central emergency power supply.
| Property | Value |
| Housing color: | white |
| Protection type (IP): | IP20 |
| Protection class: | II |
| Voltage type: | AC/DC |
| Color temperature: | 4000 K |
| Height/depth: | 2 mm |
| Battery quality: | other |
| Luminous flux in standby mode: | 310 lm |
| Operating device: | EVG |
| Light source: | LED not replaceable |
| Impact resistance: | IK06 |
| Socket: | without |
| Nominal voltage: | 230 V |
| With remote switch connection: | no |
| Installation diameter: | 116 mm |
| Cover material: | other |
| Outer diameter: | 135 mm |
| Monitoring device: | without |
| Mounting type: | structure/installation |
| Housing material: | plastic |
| Suitable for marking type: | other |
| Feed-in: | central (central battery) |
| Function: | Escape route lighting |
| With pictogram: | no |
| Suitable for number of lamps: | 1 |
| Number of lamp heads: | 1 |
| LED nominal current at constant current: | 18 mA |
| Light distributor: | without |
| Protection class (NEMA): | other |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | 25 °C |
| Power factor: | 0.58 |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 2 |
| Conductor cross-section: | 2.50 mm² |
| Connection type: | Plug connection |
Features
HAB

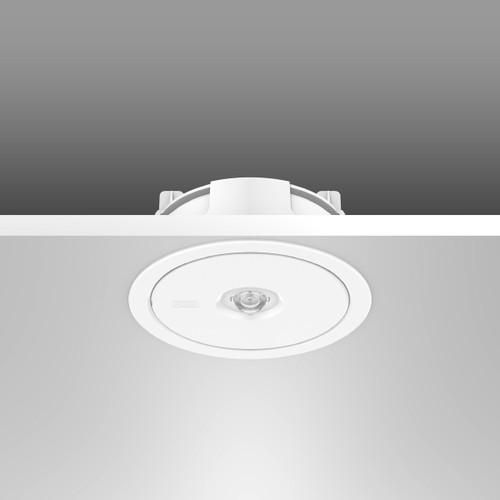

Recessed Lucio 4.6W 4000K
Manufacturer
HAN
672528.002
GTIN
4051859721338
Connection type
Plug connection
Type of wiring
Suitable for through wiring
Outer diameter
135 mm
Rated ambient temperature according to IEC62722-2-1
25°C
Operating device
Electronic ballast
Installation diameter
116 mm
Color temperature
4000K
Version
Without
Function
Escape route lighting
Suitable for number of lamps
1
Housing color
White
Height/Depth
2 mm
LED nominal current at constant current
18mA
Power factor
0.58
Conductor cross-section
2.50 mm²
Luminaire with limited surface temperature D-mark
No
Lamps
LED not replaceable
Light distributor
Without
Mounting type
Construction/Installation
Nominal voltage
230V
Number of poles
2
Impact resistance
IK06
IP protection)
IP20
Protection class (NEMA)
Other
Protection class
II
Voltage type
AC/DC
Cover material
Other
Housing material
Plastic
