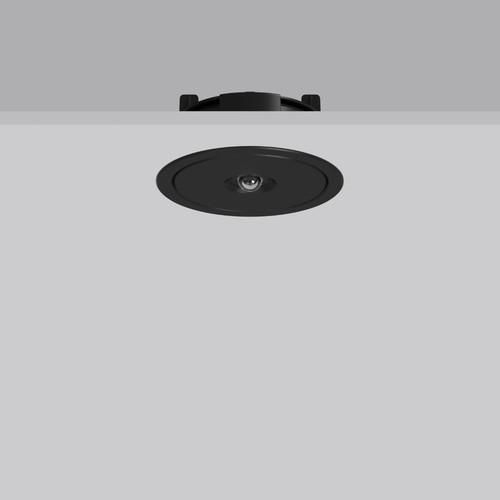

Lucio LED/4.6W-4000 LED emergency light
| Feature | Value |
| Housing color: | black |
| Protection rating (IP): | IP20 |
| Protection class: | II |
| Voltage type: | AC/DC |
| Nominal voltage: | 230 V |
| Color temperature: | 4000 K |
| Height/depth: | 2 mm |
| Battery properties: | other |
| Luminous flux in standby mode: | 310 lm |
| Operating device: | EVG |
| Light source: | LED not replaceable |
| Impact resistance: | IK06 |
| Socket: | without |
| With remote switch connection: | no |
| Installation diameter: | 116 mm |
| Cover material: | other |
| Outer diameter: | 135 mm |
| Monitoring device: | without |
| Mounting type: | structure/installation |
| Housing material: | plastic |
| Suitable for marking type: | other |
| Feed-in: | central (central battery) |
| Function: | Escape route lighting |
| With pictogram: | no |
| Suitable for number of light sources: | 1 |
| Number of lamp heads: | 1 |
| Light distributor: | without |
| Protection class (NEMA): | other |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Rated ambient temperature according to IEC 62722-2-1: | 25 °C |
| Power factor: | 0.58 |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 2 |
| Conductor cross-section: | 2.50 mm² |
| Connection type: | plug connection |
| With remote control: | no |
| Replaceable operating device: | yes |
| Max. Number of lights circuit breaker B16: | 40 |
| Max. number of lights circuit breaker C16: | 40 |
| Constant luminous flux control: | no |
Features
HAB
672528.003 Lucio LED/4,6W-4000
Manufacturer
HAN
672528.003
GTIN
4051859769675
Connection type
Plug connection
Type of wiring
Suitable for through wiring
Replaceable operating device
Yes
Outer diameter
135 mm
Rated ambient temperature according to IEC 62722-2-1
25°C
Operating device
Electronic ballast
Installation diameter
116 mm
Color temperature
4000K
Version
Without
Function
Escape route lighting
Suitable for number of light sources
1
Housing color
Black
Height/Depth
2 mm
Constant luminous flux control
No
Power factor
0.58
Conductor cross-section
2.50 mm²
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
No
Lamps
LED not replaceable
Light distributor
Without
Max. number of luminaires Circuit breaker B16
40
Max. number of luminaires Circuit breaker C16
40
With remote
No
Mounting type
Construction/Installation
Nominal voltage
230V
Number of poles
2
Impact resistance
IK06
IP protection)
IP20
Protection class (NEMA)
Other
Protection class
II
Voltage type
AC/DC
Cover material
Other
Housing material
Plastic
