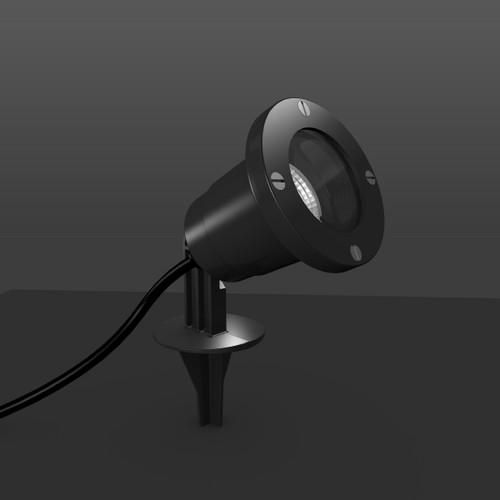

PAR16 LED/4.4W-3000K 157x98x275, ground LED spotlight
| Feature | Value |
| System power: | 4.40 W |
| Housing color: | anthracite |
| Housing material: | aluminum |
| Protection class (IP): | IP44 |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | I |
| With light source: | yes |
| With operating device: | no |
| Suitable for recessed mounting: | no |
| Length: | 157 mm |
| Width: | 98 mm |
| Height/depth: | 275 mm |
| With motion detector: | no |
| Suitable for Wall mounting: | no |
| Color temperature: | 3000 K |
| Nominal voltage: | 220 to 240 V |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | no |
| Light distribution: | symmetrical |
| Suitable for lamp power: | 4.40 W |
| Operating device: | not required |
| Beam angle: | extremely wide beam >80° |
| Impact resistance: | IK04 |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Reflector: | without |
| Suitable for number of light sources: | 1 |
| Cover material: | transparent glass |
| Covering of the lamp with thermal insulation material possible: | yes |
| Voltage type: | AC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Surface protection: | powder-coated |
| Brushed surface: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming phase control: | no |
| Dimming Phase control: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | without |
| Light emission: | direct |
| Rated ambient temperature according to IEC 62722-2-1: | -20 to 35 °C |
| Type of wiring: | Termination |
| Number of poles: | 3 |
| Connection type: | other |
| Suitable for computer workstations according to EN 12464-1: | no |
| Glow wire test according to IEC 60695-2-11: | 960 °C - 30 s |
| Photobiological safety according to EN 62471: | RG1 |
| Color consistency (McAdam ellipse): | SDCM3 |
| Replaceable control gear: | no |
| DALI-2 dimming: | no |
| Constant luminous flux control: | no |
| Adjustable color temperature: | no |
| Luminous flux adjustable: | no |
| Beam angle adjustable: | no |
| Max. Number of lights circuit breaker B16: | 25 |
| Integrated emergency power supply: | no |
| IFTTT support available: | no |
| Glare limitation (UGR): | 24.80 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
Features
HAB
PAR16 LED/4.4W-3000K 157x98x275,Earth
Manufacturer
HAN
722221.0031
GTIN
4051859804512
Covering the luminaire with thermal insulation material possible
Yes
Connection type
Other
Type of wiring
Diploma
Beam angle adjustable
No
Replaceable operating device
No
Rated ambient temperature according to IEC 62722-2-1
-20 to 35 °C
Operating device
Not required
Suitable for computer workstations according to EN 12464-1
No
Glare limitation (UGR)
24.80
Width
98 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color consistency (McAdam ellipse)
SDCM3
Color temperature
3000K
Color temperature adjustable
No
Color rendering index CRI
80-89
Version
Without
Suitable for number of light sources
1
Suitable for surface mounting
No
Suitable for ceiling mounting
No
Suitable for flush mounting
No
Suitable for clamp mounting
No
Suitable for lamp power
4.40W
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Suitable for wall mounting
No
Housing color
Anthracite
Glow wire test according to IEC 60695-2-11
960 °C - 30 s
Height/Depth
275 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
No
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux adjustable
No
Light distributor
Without
Light distribution
Symmetrical
Length
157 mm
Max. number of luminaires Circuit breaker B16
25
With operating device
No
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
220 to 240 V
Emergency power supply integrated
No
Brushed surface
No
Surface protection
Powder coated
Without dimming function
Yes
Photobiological safety according to EN 62471
RG1
Number of poles
3
Reflector
Without
Impact resistance
IK04
IP protection)
IP44
Protection class
I
Voltage type
AC
System performance
4.40W
Adjustability
Not adjustable
Cover material
Glass transparent
Housing material
Aluminum
