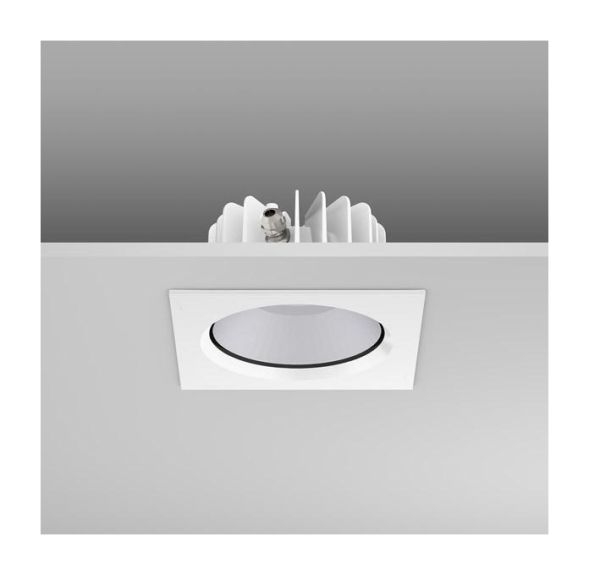

LED downlight for the highest demands on technology and design. Protection class: IP 65 or IP 20. IP 65 version maintains the protection class even in the false ceiling, thus offering the best protection against the ingress of dirt or moisture (does not apply to converters, IP 20). With IP 65 LED cover made of toughened safety glass. IP 65 versions ball-proof according to DIN 18032-03. IP 65 versions with Gore Protective Vents diaphragm valve to reduce condensation. IP 65 versions suitable for use in the food and beverage industry. Four-segment aluminum facet reflector with surface structure for IP 65 or high-gloss for IP 20. Unique light mixing chamber ensures harmonious illumination and very good glare control with a high luminaire operating efficiency. Ra 85 as standard, Ra 95 also possible as an option. LED service life 50,000 h (L80, B10). Color tolerance: 2x MacAdam (2 SDCM). Converter suitable for direct current, suitable for central emergency power supply. Also available in the square version with a round ceiling cutout. Simple spring fastening for tool-free installation. Mounting ring, luminaire housing and heat sink made of powder-coated die-cast aluminum. Rotationally symmetrical four-segment facet reflector, matt aluminum with high-gloss light mixing chamber. Clear safety glass pane. Ceiling fastening with spring system. With diaphragm valve as standard to prevent condensation. Energy efficiency class A++
| Property | Value |
| Max. System power: | 26 W |
| Rated luminous flux according to IEC 62722-2-1: | 2650 lm |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP65 |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| Installation height/depth: | 92 mm |
| With operating device: | yes |
| Suitable for recessed mounting: | yes |
| Length: | 170 mm |
| Width: | 170 mm |
| Height/depth: | 3 mm |
| With motion detector: | no |
| Color temperature: | 4000 K |
| Nominal voltage: | 220 to 240 V |
| Suitable for lamp power: | 26 W |
| Beam angle: | wide beam 41-80° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Impact resistance: | IK07 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | matt |
| Suitable for number of bulbs: | 1 |
| Luminous flux: | 2650 lm |
| Cover material: | Transparent glass |
| Covering of the lamp with thermal insulation material possible: | no |
| Voltage type: | AC/DC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for pedestal/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Surface: | powder-coated |
| Brushed surface: | no |
| LED nominal current at constant current: | 108 to 118 mA |
| Dimming depending on operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | Reflector |
| Light emission: | direct |
| Total harmonic distortion (THD): | 0.10 |
| Protection class (NEMA): | other |
| Rated ambient temperature according to IEC62722-2-1: | -25 to 35 °C |
| Type of wiring: | suitable for through wiring |
| Power factor: | 0.95 |
| Number of poles: | 3 |
| Conductor cross-section: | 1.50 mm² |
| Connection type: | Plug-in terminal |
| Luminaire luminous efficacy: | 102 lm/W |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Glow wire test in accordance with IEC 60695-2-11: | 850 °C - 30 s |
| Photobiological safety in accordance with EN 62471: | RG1 |
| Color consistency (McAdam ellipse): | SDCM2 |
