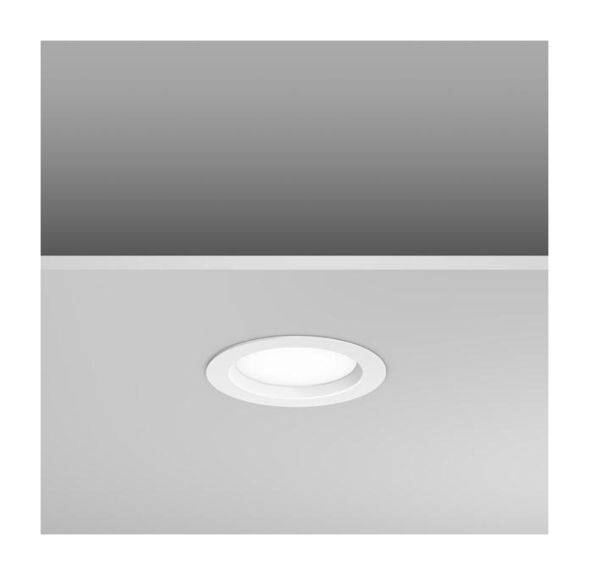

Highly efficient LED recessed downlight in three sizes. Housing and opal plastic diffuser made of UV-resistant polycarbonate. Homogeneous and soft illumination. Protection class IP 44. Luminaire luminous efficacy up to 117 lm/W. LED service life 50,000 h (L70, B50). Color tolerance: 4-fold MacAdam (4 SDCM). Suitable for through-wiring. Tool-free installation thanks to spring fastening. Color rendering Ra > 80. Cover ring made of powder-coated die-cast aluminum. Housing made of plastic (polycarbonate, UV-resistant). Diffuser made of opal plastic (polycarbonate, UV-resistant), impact-resistant. With spring fastening. Passive cooling. Suitable for through-wiring. External operating device. Light source (LED) included in delivery. Energy efficiency class A+
| Property | Value |
| Max. System power: | 9 W |
| Rated luminous flux according to IEC 62722-2-1: | 760 lm |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP44 |
| Outer diameter: | 130 mm |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| Installation height/depth: | 140 mm |
| With operating device: | yes |
| Suitable for recessed mounting: | yes |
| Height/depth: | 2 mm |
| With motion detector: | no |
| Color temperature: | 2700 K |
| Nominal voltage: | 220 to 240 V |
| Suitable for lamp power: | 9 W |
| Beam angle: | extremely wide beam >80° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device current-controlled |
| Impact resistance: | IK05 |
| Luminaire with limited Surface temperature 'D-mark': | no |
| Reflector: | without |
| Suitable for number of bulbs: | 1 |
| Luminous flux: | 760 lm |
| Cover material: | opal plastic |
| Covering of the lamp with thermal insulation material possible: | no |
| Voltage type: | AC/DC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for podium/floor mounting: | no |
| Suitable for traverse mounting: | no |
| With light sensor: | no |
| Suitable for Surface mounting: | no |
| Suitable for cable system: | no |
| Surface: | powder-coated |
| Brushed surface: | no |
| LED nominal current at constant current: | 38 to 41 mA |
| Dimming depending on operating device: | yes |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | yes |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light distributor: | without |
| Light emission: | direct |
| Total harmonic distortion (THD): | 0.10 |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Protection class (NEMA): | other |
| Rated ambient temperature according to IEC62722-2-1: | 25 °C |
| Type of wiring: | suitable for through wiring |
| Power factor: | 0.95 |
| Number of poles: | 5 |
| Conductor cross-section: | 2.50 mm² |
| Connection type: | Plug-in terminal |
| Luminaire luminous efficacy: | 85 lm/W |
| Suitable for computer workstations according to EN 12464-1: | no |
| Glow wire test according to IEC 60695-2-11: | 750 °C - 30 s |
| Photobiological safety according to EN 62471: | RG0 |
| Color consistency (McAdam ellipse): | SDCM4 |
Features
Total harmonic distortion (THD)
0.10
HAB
Toledo 9W 2700K D130,H14
Manufacturer
HAN
901573.002.76
GTIN
4051859218272
Covering the luminaire with thermal insulation material possible
No
Connection type
Plug-in terminal
Type of wiring
Suitable for through wiring
Outer diameter
130 mm
Rated lifetime L70/B50 at 25 °C
50000 hours
Rated luminous flux according to IEC 62722-2-1
760lm
Rated ambient temperature according to IEC62722-2-1
25°C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
Yes
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation height/depth
140 mm
Color consistency (McAdam ellipse)
SDCM4
Color temperature
2700K
Color rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for lamp power
9W
Suitable for number of lamps
1
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Housing color
White
Glow wire test according to IEC 60695-2-11
750 °C - 30 s
Height/Depth
2 mm
LED nominal current at constant current
38 to 41 mA
Power factor
0.95
Conductor cross-section
2.50 mm²
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
85lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
760lm
Light distributor
Without
Light distribution
Symmetrical
Max. system performance
9W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
220 to 240 V
Surface
Powder coated
Brushed surface
No
Without dimming function
No
Photobiological safety according to EN 62471
RG0
Number of poles
5
Reflector
Without
Impact resistance
IK05
IP protection)
IP44
Protection class (NEMA)
Other
Protection class
II
Voltage type
AC/DC
Adjustability
Not adjustable
Cover material
Plastic opal
Housing material
Aluminum
