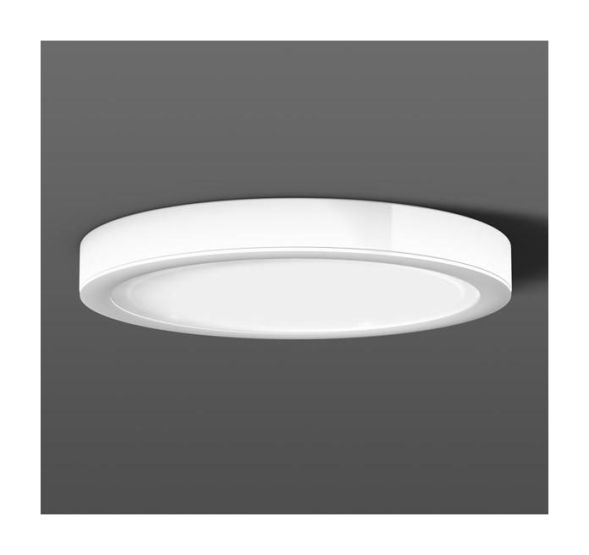

Super-flat LED surface-mounted downlight in five round sizes and four square sizes. Light guide and plastic diffuser made of non-yellowing PMMA. Suitable for ceiling and wall mounting. Very low installation height. LED service life 50,000 h (L70, B10). Color rendering Ra > 80. Color tolerance: 4x MacAdam (4 SDCM). Areas of use: hallway, side rooms, hotels, restaurants, meeting rooms, private areas. Housing made of die-cast aluminum and powder-coated sheet steel. Light guide and plastic cover made of non-yellowing plastic (PMMA). Cover made of opal matt plastic. Cover attached with a bayonet lock. Operating device (LED converter) external via plug connection. With connecting cable between light and LED converter 250 mm. Light source (LED) included in delivery. Energy efficiency class A+
| Property | Value |
| Max. System power: | 30 W |
| Rated luminous flux according to IEC 62722-2-1: | 3600 lm |
| Housing color: | white |
| Housing material: | other |
| Protection class (IP): | IP40 |
| Outer diameter: | 500 mm |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| With operating device: | yes |
| Suitable for recessed mounting: | no |
| Height/depth: | 63 mm |
| With motion detector: | no |
| Color temperature: | 4000 K |
| Nominal voltage: | 220 to 240 V |
| Rated service life L80/B10 at 25 °C: | 50000 h |
| Suitable for lamp power: | 30 W |
| Beam angle: | extremely wide beam >80° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Impact resistance: | IK06 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | without |
| Suitable for number of bulbs: | 1 |
| Luminous flux: | 3600 lm |
| Cover material: | Opal plastic |
| Covering of the lamp with thermal insulation material possible: | yes |
| Voltage type: | AC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for cable system: | no |
| Surface: | powder-coated |
| Brushed surface: | no |
| LED nominal current at constant current: | 125 to 136 mA |
| Dimming depending on operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Di DSI dimming: | no |
| Dimming potentiometer (device integrated): | no |
| GPRS dimming: | no |
| LineSwitch dimming: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | without |
| Light output: | direct |
| Total harmonic distortion (THD): | 0.20 |
| Protection class (NEMA): | other |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 35 °C |
| Type of wiring: | Termination |
| Power factor: | 0.90 |
| Number of poles: | 2 |
| Conductor cross-section: | 1.50 mm² |
| Connection type: | Plug-in terminal |
| Luminous efficacy: | 120 lm/W |
| Suitable for computer workstations according to EN 12464-1: | no |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Photobiological safety according to EN 62471: | RG0 |
| Colour consistency (McAdam ellipse): | SDCM4 |
Features
Total harmonic distortion (THD)
0.20
HAB
Toledo 35W 4000K D500 H63
Manufacturer
HAN
901587.002.1
GTIN
4051859151814
Covering the luminaire with thermal insulation material possible
Yes
Connection type
Plug-in terminal
Type of wiring
Diploma
Outer diameter
500 mm
Rated lifetime L80/B10 at 25 °C
50000 hours
Rated luminous flux according to IEC 62722-2-1
3600lm
Rated ambient temperature according to IEC62722-2-1
-20 to 35 °C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color consistency (McAdam ellipse)
SDCM4
Color temperature
4000K
Color rendering index CRI
80-89
Version
Without
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for clamp mounting
No
Suitable for lamp power
30W
Suitable for number of lamps
1
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Housing color
White
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Height/Depth
63 mm
LED nominal current at constant current
125 to 136 mA
Power factor
0.90
Conductor cross-section
1.50 mm²
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
120lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
3600lm
Light distributor
Without
Light distribution
Symmetrical
Max. system performance
30W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
220 to 240 V
Surface
Powder coated
Brushed surface
No
Without dimming function
Yes
Photobiological safety according to EN 62471
RG0
Number of poles
2
Reflector
Without
Impact resistance
IK06
IP protection)
IP40
Protection class (NEMA)
Other
Protection class
II
Voltage type
AC
Adjustability
Not adjustable
Cover material
Plastic opal
Housing material
Other
