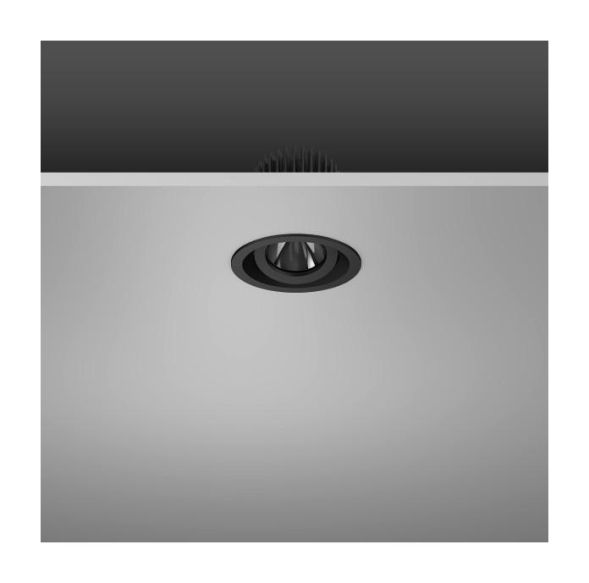

Delicately small dimensions. Replacement for 35 W and 50 W low-voltage recessed spotlights. LED service life 50,000 h (L70, B10). Color rendering index Ra > 80. Color tolerance: 4x MacAdam (4 SDCM). Two different beam angles. Flexible alignment thanks to 25° swivel range. Safety glass pane to protect the LED. Opal PMMA plastic pane included, optionally mountable without tools: to reduce direct glare for even, homogeneous light emission. Versions in dimmable DALI and for phase dimming. Powder-coated die-cast aluminum cover. Cold-extruded aluminum heat sink. Can be swiveled 25° vertically. High-gloss anodized aluminum reflector. With protective pane. Ceiling attachment with spring system. External LED converter via plug connection. With connecting cable between light and LED converter 250 mm. Passive cooling. Light source (LED) included in delivery. LED converter included in delivery. Cover plate plastic (PMMA), opal, also included as an accessory. Energy efficiency class A+
| Property | Value |
| Max. System power: | 16 W |
| Rated luminous flux according to IEC 62722-2-1: | 930 lm |
| Housing color: | black |
| Housing material: | aluminum |
| Protection class (IP): | IP40 |
| Outer diameter: | 91 mm |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| Installation height/depth: | 95 mm |
| With operating device: | yes |
| Suitable for recessed mounting: | yes |
| Height/depth: | 2 mm |
| With motion detector: | no |
| Color temperature: | 3000 K |
| Nominal voltage: | 220 to 240 V |
| Suitable for lamp power: | 16 W |
| Beam angle: | medium beam 21-40° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Impact resistance: | IK06 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | high gloss |
| Suitable for number of bulbs: | 1 |
| Luminous flux: | 930 lm |
| Cover material: | transparent plastic |
| Covering of the lamp with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for podium/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Surface: | powder-coated |
| Brushed surface: | no |
| LED nominal current at constant current: | 67 to 73 mA |
| Dimming depending on operating device: | yes |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | d>no|
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light distributor: | Reflector |
| Light emission: | direct |
| Protection class (NEMA): | other |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 25 °C |
| Type of wiring: | Termination |
| Power factor: | 0.95 |
| Connection type: | other |
| Luminaire luminous efficacy: | 59 lm/W |
| Suitable for computer workstations according to EN 12464-1: | no |
| Glow wire test according to IEC 60695-2-11: | 850 °C - 30 s |
| Photobiological safety according to EN 62471: | RG1 |
| Color consistency (McAdam ellipse): | SDCM4 |
Features
HAB
Levido 16W 3000K D91 H92
Manufacturer
HAN
901609.003
GTIN
4051859222767
Covering the luminaire with thermal insulation material possible
No
Connection type
Other
Type of wiring
Diploma
Beam angle
Medium beam 21-40°
Outer diameter
91 mm
Rated luminous flux according to IEC 62722-2-1
930lm
Rated ambient temperature according to IEC62722-2-1
-20 to 25 °C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
Yes
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation height/depth
95 mm
Color consistency (McAdam ellipse)
SDCM4
Color temperature
3000K
Color rendering index CRI
80-89
Version
Without
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for lamp power
16W
Suitable for number of lamps
1
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Housing color
Black
Glow wire test according to IEC 60695-2-11
850 °C - 30 s
Height/Depth
2 mm
LED nominal current at constant current
67 to 73 mA
Power factor
0.95
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
59lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
930lm
Light distributor
Reflector
Light distribution
Symmetrical
Max. system performance
16W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
220 to 240 V
Surface
Powder coated
Brushed surface
No
Without dimming function
No
Photobiological safety according to EN 62471
RG1
Reflector
High gloss
Impact resistance
IK06
IP protection)
IP40
Protection class (NEMA)
Other
Protection class
II
Voltage type
AC
Adjustability
Not adjustable
Cover material
Plastic transparent
Housing material
Aluminum
