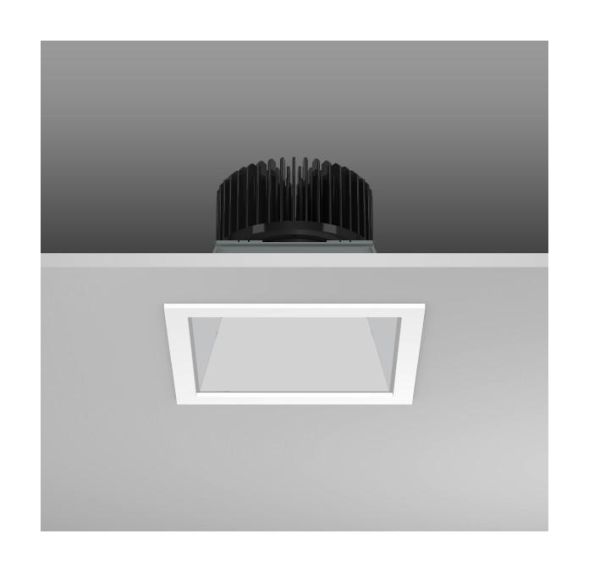

High-quality recessed downlight with a square illuminated surface. Installation frame made of powder-coated die-cast aluminum. Retaining bracket made of galvanized sheet steel. Reflector made of high-gloss anodized aluminum. Ceiling mounting with spring system. Including external operating device via plug connection, connecting cable 600 mm. Through-wiring box (5-pin) available as an accessory.
| Property | Value |
| Max. System power: | 19 W |
| Rated luminous flux according to IEC 62722-2-1: | 2500 lm |
| Housing color: | white |
| Housing material: | other |
| Protection class (IP): | IP20 |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| Installation height/depth: | 150 mm |
| With operating device: | yes |
| Suitable for recessed mounting: | yes |
| Length: | 176 mm |
| Width: | 176 mm |
| Height/depth: | 4 mm |
| With motion detector: | no |
| Color temperature: | 3000 K |
| Nominal voltage: | 220 to 240 V |
| Suitable for lamp power: | 19 W |
| Beam angle: | free beam/diffuse |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Impact resistance: | IK03 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | high-gloss |
| Suitable for number of bulbs: | 1 |
| Installation width: | 165 mm |
| Installation length: | 165 mm |
| Luminous flux: | 2500 lm |
| Covering the lamp with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for pedestal/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Surface: | powder-coated |
| Brushed surface: | no |
| LED nominal current at constant current: | 79 to 86 mA |
| Dimming depending on the operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated in the device): | no |
| Dimming GPRS: | no |
| LineSwitch dimming: | no |
| Manufacturer-specific dimming: | no |
| Mains voltage modulation dimming: | no |
| Trailing edge dimming: | no |
| Phase control dimming: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | Reflector |
| Light emission: | direct |
| Total harmonic distortion (THD): | 0.20 |
| Degree of protection (NEMA): | other |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 35 °C |
| Type of wiring: | Termination |
| Power factor: | 0.90 |
| Number of poles: | 2 |
| Conductor cross-section: | 1.50 mm² |
| Connection type: | Plug-in terminal |
| Luminaire luminous efficacy: | 132 lm/W |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Glow wire test in accordance with IEC 60695-2-11: | 650 °C - 30 s |
| Photobiological safety in accordance with EN 62471: | RG1 |
| Color consistency (McAdam ellipse): | SDCM2 |
Features
Total harmonic distortion (THD)
0.20
HAB
Quardo 19W 2500lm 830 white
Manufacturer
HAN
901705.002
GTIN
4051859503750
Covering the luminaire with thermal insulation material possible
No
Connection type
Plug-in terminal
Type of wiring
Diploma
Beam angle
Free-radiating/diffuse
Rated luminous flux according to IEC 62722-2-1
2500lm
Rated ambient temperature according to IEC62722-2-1
-20 to 35 °C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Width
176 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation width
165 mm
Installation height/depth
150 mm
Installation length
165 mm
Color consistency (McAdam ellipse)
SDCM2
Color temperature
3000K
Color rendering index CRI
80-89
Version
Without
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for lamp power
19 W
Suitable for number of lamps
1
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Housing color
White
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Height/Depth
4 mm
LED nominal current at constant current
79 to 86 mA
Power factor
0.90
Conductor cross-section
1.50 mm²
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
132lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
2500lm
Light distributor
Reflector
Light distribution
Symmetrical
Length
176 mm
Max. system performance
19 W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
220 to 240 V
Surface
Powder coated
Brushed surface
No
Without dimming function
Yes
Photobiological safety according to EN 62471
RG1
Number of poles
2
Reflector
High gloss
Impact resistance
IK03
IP protection)
IP20
Protection class (NEMA)
Other
Protection class
II
Voltage type
AC
Adjustability
Not adjustable
Housing material
Other
