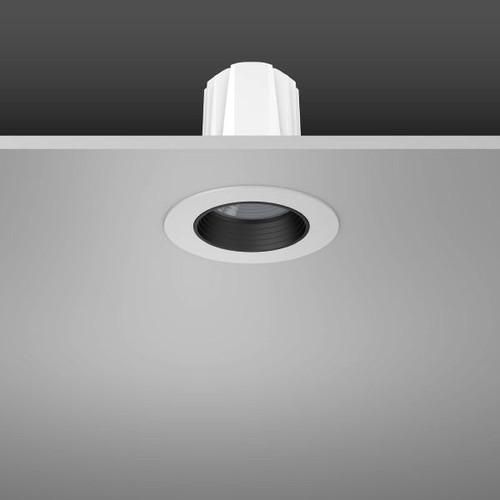

Heledon LED/29W-3000K, Ra92 D LED recessed ceiling spotlight
| Feature | Value |
| System power: | 29 W |
| Rated luminous flux: | 3050 lm |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 124 mm |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| Installation height/depth: | 170 mm |
| With operating device: | yes |
| Suitable for recessed mounting: | yes |
| Height/depth: | 3 mm |
| With motion detector: | no |
| Suitable for wall mounting: | no |
| Color temperature: | 3000 K |
| Nominal voltage: | 220 to 240 V |
| Color rendering index CRI: | 90-100 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Suitable for lamp power: | 29 W |
| Operating device: | LED operating device, current-controlled |
| Beam angle: | narrow beam 11 - 20° |
| Impact resistance: | IK06 |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Reflector: | without |
| Suitable for number of light sources: | 1 |
| Luminous flux: | 3050 lm |
| Cover of the Luminaire with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for pedestal/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Surface protection: | powder-coated |
| Brushed surface: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| DALI dimming: | yes |
| DMX dimming: | no |
| DSI dimming: | no |
| Potentiometer dimming (device-integrated): | no |
| LineSwitch dimming: | no |
| Manufacturer-specific dimming: | no |
| Mains voltage modulation dimming: | no |
| Phase control dimming: | no |
| Phase control dimming: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Sine wave reduction dimming: | no |
| Touch and dim dimming: | no |
| Zigbee dimming: | no |
| Push button dimming: | no |
| Without Dimming function: | no |
| Light distributor: | Focus lens |
| Light emission: | direct |
| Total harmonic distortion (THD): | 0.20 |
| Protection class (NEMA): | other |
| Rated ambient temperature according to IEC 62722-2-1: | 25 °C |
| Wiring type: | Termination |
| Power factor: | 0.90 |
| Number of poles: | 5 |
| Conductor cross-section: | 1.50 mm² |
| Connection type: | Plug-in terminal |
| Luminous efficacy: | 106 lm/W |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| Glow wire test in accordance with IEC 60695-2-11: | 650 °C - 30 s |
| Photobiological safety in accordance with EN 62471: | RG1 |
| Color consistency (McAdam ellipse): | SDCM2 |
| Replaceable operating device: | yes |
| DALI-2 dimming: | no |
| Luminous flux maintenance with an average service life of 50,000 hours at an ambient temperature of 25 °C: | 90 % |
| Failure rate with an average service life of 50,000 hours at an ambient temperature of 25 °C. (tq): | 10 % |
| Constant luminous flux control: | no |
| Color temperature adjustable: | no |
| Luminous flux adjustable: | continuously |
| Beam angle adjustable: | no |
| Installation diameter: | 114 mm |
| Max. number of lights circuit breaker B16: | 17 |
| Max. Number of lights circuit breaker C16: | 28 |
| Integrated emergency power supply: | no |
| IFTTT support available: | no |
| Glare limitation (UGR): | 12.10 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
Features
Total harmonic distortion (THD)
0.20
Rated luminous flux
3050 lm
HAB
Heledon LED/29W-3000K,Ra92 D
Manufacturer
HAN
901751.002.76
GTIN
4051859844679
Covering the luminaire with thermal insulation material possible
No
Connection type
Plug-in terminal
Type of wiring
Diploma
Beam angle
Narrow beam 11 - 20°
Beam angle adjustable
No
Replaceable operating device
Yes
Outer diameter
124 mm
Rated ambient temperature according to IEC 62722-2-1
25°C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
Yes
Glare limitation (UGR)
12.10
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation diameter
114 mm
Installation height/depth
170 mm
Color consistency (McAdam ellipse)
SDCM2
Color temperature
3000K
Color temperature adjustable
No
Color rendering index CRI
90-100
Version
Without
Suitable for number of light sources
1
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for lamp power
29 W
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Suitable for wall mounting
No
Housing color
White
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Height/Depth
3 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Power factor
0.90
Conductor cross-section
1.50 mm²
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
No
Luminaire luminous efficacy
106lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
3050lm
Luminous flux adjustable
Continuously variable
Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.
90 %
Light distributor
Focus lens
Light distribution
Symmetrical
Max. number of luminaires Circuit breaker B16
17
Max. number of luminaires Circuit breaker C16
28
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
220 to 240 V
Emergency power supply integrated
No
Brushed surface
No
Surface protection
Powder coated
Without dimming function
No
Photobiological safety according to EN 62471
RG1
Number of poles
5
Reflector
Without
Impact resistance
IK06
IP protection)
IP20
Protection class (NEMA)
Other
Protection class
II
Voltage type
AC
System performance
29 W
Adjustability
Not adjustable
Housing material
Aluminum
