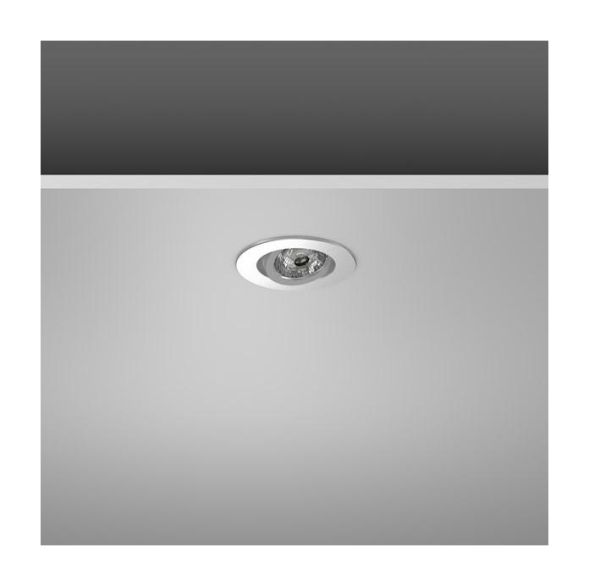

Die-cast aluminum recessed spotlight with very small dimensions. 68 mm ceiling cut-out for standard hole cutters. With external through-wiring box for phase dimming. LED converter connection via plug-in connection with 300 mm connecting cable for phase dimming. Hybrid optics system with lens and reflector for homogeneous illumination. Replacement for 35 W and 50 W low-voltage downlights. Dim to warm versions: when dimmed, the light color changes dynamically from 3000 K to 1800 K, creating a cozy, comfortable lighting ambience. Color rendering index Ra > 80 for monochrome standard LED, color rendering index Ra 97 for dim to warm. LED service life: for monochrome standard LED 50,000 h (L70, B50), for dim to warm 25,000 h (L70, B50). Can be flexibly aligned thanks to a 25° swivel range. Versions with monochrome standard LED, dimmable DALI or for phase dimming. LED version Dim to Warm. Cover made of die-cast aluminum, powder-coated. Heat sink made of aluminum. Can be swiveled vertically by 25°. Passive cooling. Hybrid optics system with lens made of plastic (polycarbonate) and white reflector. Ceiling mounting with spring system. LED converter with external through-wiring box via plug-in connection. With 300 mm connecting cable between the luminaire and the operating device. Light source (LED), LED converter and terminal box included in delivery. Energy efficiency class A+
| Property | Value |
| Max. System power: | 7.50 W |
| Rated luminous flux according to IEC 62722-2-1: | 500 lm |
| Housing color: | Silver |
| Housing material: | Aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 80 mm |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| Installation height/depth: | 69 mm |
| With operating device: | yes |
| Suitable for recessed mounting: | yes |
| Height/depth: | 2 mm |
| With motion detector: | no |
| Color temperature: | 1800 to 3000 K |
| Nominal voltage: | 220 to 240 V |
| Suitable for lamp power: | 7.50 W |
| Beam angle: | medium beam 21-40° |
| Color rendering index CRI: | 90-100 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Impact resistance: | IK03 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Suitable for number of bulbs: | 1 |
| Luminous flux: | 500 lm |
| Cover material: | transparent plastic |
| Covering of the lamp with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | multi-colored |
| Suitable for track mounting: | no |
| Adjustability: | pivotable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for traverse mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Surface: | powder-coated |
| Brushed surface: | no |
| LED nominal current at constant current: | 31 to 34 mA |
| Dimming depending on the operating device: | yes |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device integrated integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light distributor: | Reflector |
| Light emission: | direct |
| Rated service life L70/B50 at 25 °C: | 25000 h |
| Protection class (NEMA): | other |
| Rated ambient temperature according to IEC62722-2-1: | -30 to 40 °C |
| Type of wiring: | suitable for through-wiring |
| Number of poles: | 3 |
| Conductor cross-section: | 2.50 mm² |
| Connection type: | Plug-in terminal |
| Luminous efficacy: | 67 lm/W |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Photobiological safety according to EN 62471: | RG1 |
| Color consistency (McAdam ellipse): | SDCM5 |
