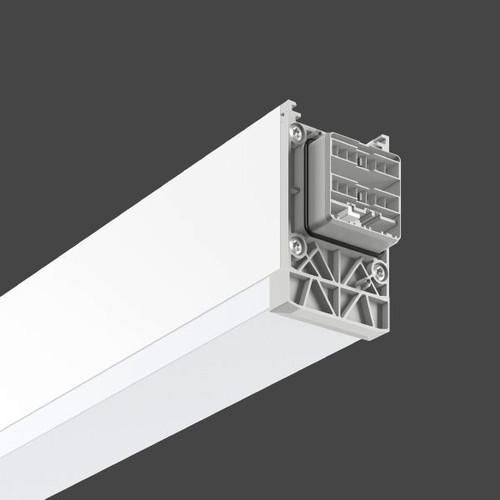

Linedo.LED/90W-827-865,2291,opal,7-pin LED strip light
| Property | Value |
| Suitable for number of light sources: | 8 |
| Luminous flux: | 9000 lm |
| Color temperature: | 2700 to 6500 K |
| With light source: | yes |
| Operating device: | LED operating device current-controlled |
| Length: | 2291 mm |
| Width: | 58 mm |
| Height/Depth: | 90.80 mm |
| Protection rating (IP): | IP54 |
| Protection class: | I |
| Light distribution: | symmetrical |
| Light emission: | direct |
| Suitable for emergency lighting: | no |
| Housing material: | Aluminum |
| Housing color: | white |
| Color rendering index CRI: | 80-89 |
| With operating device: | yes |
| Reflector: | without |
| Socket: | without |
| Nominal voltage: | 220 to 240 V |
| Light source: | LED not replaceable |
| Light color: | multicolored |
| Voltage type: | AC/DC |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | yes |
| Dimming DMX: | no |
| Dimming manufacturer-specific: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming LineSwitch: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light distributor: | without |
| Beam angle: | free beam/diffuse |
| Rated service life L80/B10 at 25 °C: | 80000 h |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Suitable for lamp power: | 86 to 90 W |
| Max. System power: | 90 W |
| Power factor: | 0.98 |
| Wiring type: | with through-wiring |
| Number of poles: | 7 |
| Rated current: | 375 to 409 mA |
| Replaceable operating device: | yes |
| Color consistency (McAdam ellipse): | SDCM3 |
| Integrated emergency power supply: | no |
| Luminaire light output: | 100 lm/W |
| Constant luminous flux control: | yes |
| Beam angle adjustable: | no |
| Color temperature adjustable: | continuously |
| Luminous flux adjustable: | no |
Features
HAB
Linedo.LED/90W-827-865,2291,opal,7pin
Manufacturer
HAN
9523OH.802.776.010
GTIN
4051859964018
Type of wiring
With through wiring
Beam angle
Free-radiating/diffuse
Beam angle adjustable
No
Replaceable operating device
Yes
Rated lifetime L80/B10 at 25 °C
80000 hours
Operating device
LED control gear current controlled
Width
58 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color consistency (McAdam ellipse)
SDCM3
Color temperature
2700 to 6500 K
Color temperature adjustable
Continuously variable
Color rendering index CRI
80-89
Version
Without
Suitable for number of light sources
8
Suitable for lamp power
86 to 90 W
Suitable for emergency lighting
No
Housing color
White
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Height/Depth
90.80 mm
Constant luminous flux control
Yes
Power factor
0.98
Luminaire luminous efficacy
100lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
Multicolored
Luminous flux
9000lm
Luminous flux adjustable
No
Light distributor
Without
Light distribution
Symmetrical
Length
2291 mm
Max. system performance
90W
With operating device
Yes
With light source
Yes
Nominal voltage
220 to 240 V
Rated current
375 to 409 mA
Emergency power supply integrated
No
Without dimming function
No
Number of poles
7
Reflector
Without
IP protection)
IP54
Protection class
I
Voltage type
AC/DC
Housing material
Aluminum
