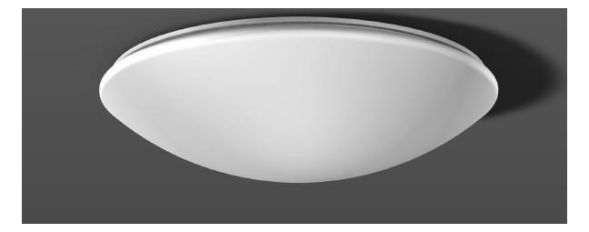

Decorative round surface-mounted light. For escape route lighting. Powder-coated metal fitting. Diffuser made of plastic (polycarbonate), opal, impact-resistant. Diffuser attached with patented locking technology (pressure lock). Suitable for ceiling mounting, wall mounting. Operating device integrated.
| Property | Value |
| Housing color: | white |
| Protection rating (IP): | IP40 |
| Protection class: | I |
| Voltage type: | AC/DC |
| Color temperature: | 4000 K |
| Height/depth: | 160 mm |
| Max. System performance: | 38 W |
| Battery properties: | other |
| Rated luminous flux according to IEC 62722-2-1: | 4250 lm |
| Luminous flux in standby mode: | 480 lm |
| Operating device: | LED operating device, current-controlled |
| Light source: | LED not replaceable |
| Impact resistance: | IK03 |
| Socket: | without |
| Nominal voltage: | 220 to 240 V |
| With remote switch connection: | no |
| Cover material: | opal plastic |
| Outer diameter: | 620 mm |
| With light source: | yes |
| Monitoring device: | without |
| Mounting type: | Wall mounting/ceiling mounting |
| Material of the housing: | steel |
| Suitable for type of marking: | other |
| Feed-in: | central (central battery) |
| Function: | escape route lighting |
| With pictogram: | no |
| Suitable for number of lamps: | 16 |
| Number of lamp heads: | 1 |
| LED nominal current at Constant current: | 158 to 173 mA |
| Light distributor: | without |
| Protection class (NEMA): | other |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | 25 °C |
| Power factor: | 0.55 |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 6 |
| Conductor cross-section: | 2.50 mm² |
| Connection type: | Plug connection |
Features
HAB
Flat Polym.38W 4250lm 840 ws N:480lm
Manufacturer
HAN
672262.002.6
GTIN
4051859720102
Connection type
Plug connection
Type of wiring
Suitable for through wiring
Outer diameter
620 mm
Rated luminous flux according to IEC 62722-2-1
4250lm
Rated ambient temperature according to IEC62722-2-1
25°C
Operating device
LED control gear current controlled
Color temperature
4000K
Version
Without
Function
Escape route lighting
Suitable for number of lamps
16
Housing color
White
Height/Depth
160 mm
LED nominal current at constant current
158 to 173 mA
Power factor
0.55
Conductor cross-section
2.50 mm²
Luminaire with limited surface temperature D-mark
No
Lamps
LED not replaceable
Light distributor
Without
Max. system performance
38W
With light source
Yes
Mounting type
Wall mounting/ceiling mounting
Nominal voltage
220 to 240 V
Number of poles
6
Impact resistance
IK03
IP protection)
IP40
Protection class (NEMA)
Other
Protection class
I
Voltage type
AC/DC
Cover material
Plastic opal
Housing material
Steel
