Description

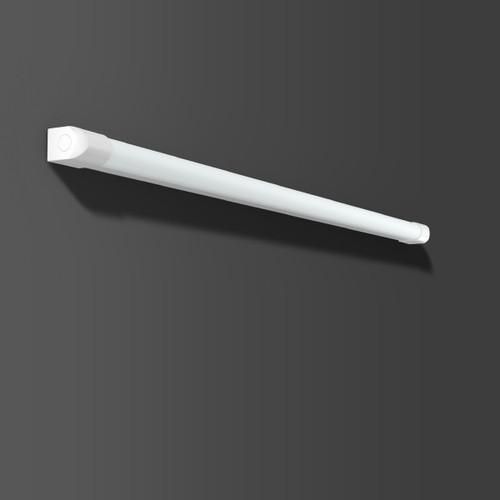

451223.002 : HB 507, 11 W, 1400 lm, 830, 840, white, on/off linear lights, L 1200 W 42 H 55
| Property | Value |
| Max. System power: | 11 W |
| Rated luminous flux according to IEC 62722-2-1: | 1400 lm |
| Suitable for number of lamps: | 1 |
| Length: | 1200 mm |
| Width: | 42 mm |
| Height/depth: | 55 mm |
| Protection rating (IP): | IP40 |
| Protection class: | II |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Color temperature: | 3000 to 4000 K |
| Impact resistance: | IK03 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Suitable for wall mounting: | yes |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | free beam/diffuse |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | -30 to 40 °C |
| Socket: | other |
| Connection type: | plug-in terminal |
| With operating device: | yes |
| Without dimming function: | yes |
| Light emission: | direct/indirect |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device current-controlled |
| Suitable for recessed mounting: | no |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | yes |
| Covering of the luminaire with thermal insulation material possible: | yes |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| DALI dimming: | no |
| Mains voltage modulation dimming: | no |
| Trailing edge dimming: | no |
| Phase control dimming: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Sine wave reduction dimming: | no |
| Touch and dim dimming: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on the operating device: | no |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Protection class (NEMA): | other |
| Suitable for lamp power: | 11 W |
| Luminaire luminous efficacy: | 128 lm/W |
| Power factor: | 0.70 |
| Wiring type: | Termination |
| Number of poles: | 2 |
| Conductor cross-section: | 2.50 mm² |
Features
HAB
HB 507 11W 1400lm 830 840 ws
Manufacturer
HAN
451223.002
GTIN
4051859726807
Covering the luminaire with thermal insulation material possible
Yes
Connection type
Plug-in terminal
Type of wiring
Diploma
Beam angle
Free-radiating/diffuse
Rated lifetime L70/B50 at 25 °C
50000 hours
Rated luminous flux according to IEC 62722-2-1
1400lm
Rated ambient temperature according to IEC62722-2-1
-30 to 40 °C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Width
42 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
3000 to 4000 K
Color rendering index CRI
80-89
Version
Other
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for lamp power
11 W
Suitable for number of lamps
1
Suitable for emergency lighting
Yes
Suitable for pendulum suspension
No
Suitable for wall mounting
Yes
Housing color
White
Height/Depth
55 mm
Power factor
0.70
Conductor cross-section
2.50 mm²
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
128lm/W
Lamps
LED not replaceable
Light emission
Direct/indirect
Light distribution
Symmetrical
Length
1200 mm
Max. system performance
11 W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
220 to 240 V
Without dimming function
Yes
Number of poles
2
Impact resistance
IK03
IP protection)
IP40
Protection class (NEMA)
Other
Protection class
II
Voltage type
AC
