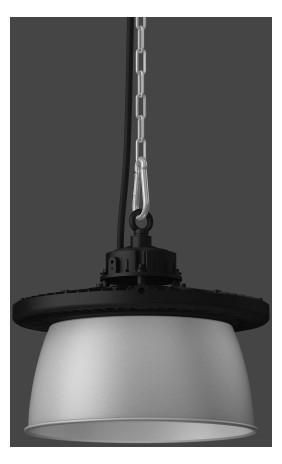

Round hall spotlight for chain or cable suspension. Robust housing made of die-cast aluminum with ring eyelet, powder-coated. Vertical cooling fins ensure constant heat dissipation and thus ensure optimal thermal management. Diffuser made of clear, anti-reflective single-pane safety glass (ESG). Reflector made of frosted aluminum. Primary light control with high-performance surface LED and reflector made of frosted aluminum to limit glare. Simple installation thanks to one-point suspension. Pendant suspension via chain or steel cable provided by the customer. With connecting cable (1.5 m). Dimming range 10% to 100%. Ceiling and wall mounting brackets available as accessories. Luminaires with limited surface temperature according to DIN EN 60598-2-24 for use in an environment in which deposits of conductive dust on the luminaire can be expected. Approved for use in the food and beverage industry.
| Property | Value |
| Max. System power: | 165 W |
| Rated luminous flux according to IEC 62722-2-1: | 22800 lm |
| Protection class: | I |
| Impact resistance: | IK08 |
| Protection class (IP): | IP65 |
| Housing color: | black |
| Color temperature: | 4000 K |
| Suitable for number of bulbs: | 1 |
| Light source: | LED not replaceable |
| Height/depth: | 328 mm |
| Socket: | without |
| With light source: | yes |
| Operating device: | LED operating device, current-controlled |
| Nominal voltage: | 230 to 240 V |
| Beam angle: | extremely wide beam >80° |
| Dimming DALI: | yes |
| Light color: | white |
| With operating device: | yes |
| Voltage type: | AC |
| Suitable for emergency lighting: | no |
| Housing material: | aluminum |
| With protective cover: | yes |
| Reflector: | matt |
| Ball-proof: | no |
| Luminaire with limited surface temperature 'D-mark': | yes |
| Color rendering index CRI: | 80-89 |
| Light distribution: | symmetrical |
| Suitable for secondary lamps: | no |
| LED nominal current at constant current: | 688 to 717 mA |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming phase section: | no |
| no | |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light distributor: | Reflector |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 960 °C - 30 s |
| Rated ambient temperature according to IEC62722-2-1: | -30 to 50 °C |
| Suitable for lamp power: | 165 W |
| Power factor: | 0.95 |
| Outer diameter: | 360 mm |
| Wiring type: | Termination |
| Connection type: | other |
