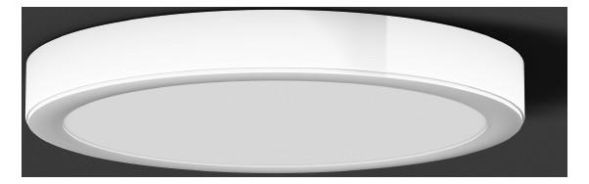

Super-flat LED surface-mounted downlight for high demands. Cylinder housing made of powder-coated sheet steel. Cover ring made of powder-coated die-cast aluminum. Diffuser made of durable polycarbonate (PC) with a smooth surface on the room side for low sensitivity to dirt and to prevent the settlement of germs and bacteria. No direct glare thanks to the satin-finished microprismatic diffuser. Tunable White dynamically adjustable from 2700 K to 6500 K. Suitable for ceiling mounting, wall mounting. Control gear integrated. With Casambi smart+free Bluetooth® control for wireless networking and operation via Android / iOS device, free app available for download.
| Property | Value |
| Max. System power: | 30 W |
| Rated luminous flux according to IEC 62722-2-1: | 2700 lm |
| Housing color: | white |
| Protection class (IP): | IP40 |
| Outer diameter: | 500 mm |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| With operating device: | yes |
| Suitable for recessed mounting: | no |
| Height/depth: | 63 mm |
| With motion detector: | no |
| Color temperature: | 2700 to 6500 K |
| Nominal voltage: | 220 to 240 V |
| Rated service life L80/B10 at 25 °C: | 50000 h |
| Suitable for lamp power: | 30 W |
| Beam angle: | extremely wide beam >80° |
| Color rendering index CRI: | 90-100 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device current-controlled |
| Impact resistance: | IK06 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | without |
| Suitable for number of bulbs: | 1 |
| Luminous flux: | 2700 lm |
| Cover material: | Structured plastic |
| Covering of the luminaire with thermal insulation material possible: | yes |
| Type of voltage: | AC/DC |
| Light color: | multi-colored |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for podium/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for cable system: | no |
| Surface: | powder-coated |
| Brushed surface: | no |
| LED nominal current at constant current: | 125 to 136 mA |
| Dimming depending on the operating device: | yes |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| no | |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | yes |
| Dimming mains voltage modulation: | no |
| Dimming phase cut: | no |
| Dimming phase leading: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light distributor: | other |
| Light output: | direct |
| Total harmonic distortion (THD): | 0.10 |
| Protection class (NEMA): | other |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 25 °C |
| Type of wiring: | suitable for through wiring |
| Power factor: | 0.96 |
| Number of poles: | 2 |
| Conductor cross-section: | 2.50 mm² |
| Connection type: | Plug-in terminal |
| Luminous efficacy: | 90 lm/W |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Photobiological safety according to EN 62471: | RG1 |
| Color consistency (McAdam ellipse): | SDCM3 |
Features
Total harmonic distortion (THD)
0.10
HAB
Toledo Flat UGR19 30W 2500lm 927-965 ws
Manufacturer
HAN
901720.002.2.730
GTIN
4051859725411
Covering the luminaire with thermal insulation material possible
Yes
Connection type
Plug-in terminal
Type of wiring
Suitable for through wiring
Outer diameter
500 mm
Rated lifetime L80/B10 at 25 °C
50000 hours
Rated luminous flux according to IEC 62722-2-1
2700lm
Rated ambient temperature according to IEC62722-2-1
-20 to 25 °C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
Yes
Dimming manufacturer-specific
Yes
Dimming with push button
No
Dimming programmable
No
Color consistency (McAdam ellipse)
SDCM3
Color temperature
2700 to 6500 K
Color rendering index CRI
90-100
Version
Without
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for clamp mounting
No
Suitable for lamp power
30W
Suitable for number of lamps
1
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Housing color
White
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Height/Depth
63 mm
LED nominal current at constant current
125 to 136 mA
Power factor
0.96
Conductor cross-section
2.50 mm²
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
90lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
Multicolored
Luminous flux
2700lm
Light distributor
Other
Light distribution
Symmetrical
Max. system performance
30W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
220 to 240 V
Surface
Powder coated
Brushed surface
No
Without dimming function
No
Photobiological safety according to EN 62471
RG1
Number of poles
2
Reflector
Without
Impact resistance
IK06
IP protection)
IP40
Protection class (NEMA)
Other
Protection class
II
Voltage type
AC/DC
Adjustability
Not adjustable
Cover material
Plastic structured
