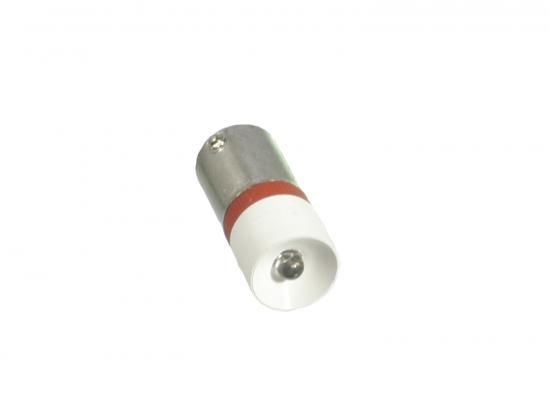

Single LED 10x25mm Ultra-bright 3 mm LED, highly reflective plastic body (reflector) with color ring in luminous color. Integrated series resistor, with additional SI diode as 1-way rectification for AC operation. Beam angle 50°, center contact anode connection (+). With AC operation, the power consumption and brightness are reduced by approx. 50%. Energy efficiency class: not subject to labeling
| Property | Value |
| Nominal current: | 15 mA |
| Nominal voltage: | 28 V |
| Color: | white |
| Voltage type: | AC/DC |
| Length: | 25 mm |
| Diameter: | 10 mm |
| Energy efficiency class: | A+ |
| Average nominal service life: | 25000 h |
| Power consumption: | 0.4 W |
| Luminous flux: | 0.17 lm |
| Weighted energy consumption in 1,000 hours: | 0.44 kWh |
| Beam angle: | 30 ° |
Features
Power consumption
0.4 W
HAB
35348
Manufacturer
HAN
35348
GTIN
4034451353480
Beam angle
30°
Diameter
10 mm
Energy efficiency class
A+
Color
Weighted energy consumption in 1,000 hours
0.44 kWh
Luminous flux
0.17lm
Length
25 mm
Average nominal life
25000 hours
Nominal voltage
28V
Rated current
15mA
Voltage type
AC/DC
