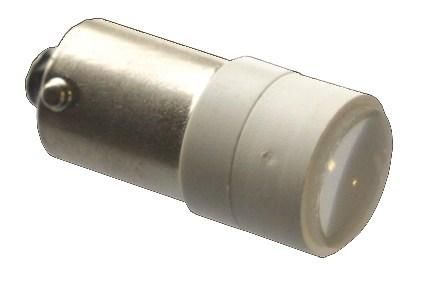

Spot LED 10x22 Ba9s 24/28VAC/DC yellow High light output thanks to special ultra-bright LEDs in conjunction with reflector and lens, enables display over long distances. Highly reflective plastic body (reflector) with color ring in luminous color. Standard with integrated series resistor and SI diode, 1-way rectification. Center contact anode connection (+). With AC operation, the power consumption and brightness are reduced by approx. 50%. Energy efficiency class: not subject to labeling
| Property | Value |
| Xenon: | no |
| Nominal current: | 15 mA |
| Socket: | BA9s |
| Diameter: | 10 mm |
| Total length: | 22 mm |
| Color: | yellow |
| Lamp shape: | Tube, single-ended |
| Suitable for flashlights: | no |
| Suitable for display purposes: | yes |
| Halogen: | no |
| Krypton: | no |
| Lamp voltage: | 28 V |
| Average nominal life: | 60000 h |
| Lamp power: | 0.28 W |
| Technology: | LED |
| Suitable for rotating beacon: | no |
Features
Technology
LED
Suitable for rotating beacon
No
HAB
35553
Manufacturer
HAN
35553
GTIN
4034451355538
Diameter
10 mm
Color
Suitable for display purposes
Yes
Suitable for flashlights
No
Overall length
22 mm
Halogen
No
Krypton
No
Lamp shape
Tube, single-ended
Lamp power
0.28W
Lamp voltage
28V
Average nominal life
60000 hours
Rated current
15mA
Base
BA9s
Xenon
No
