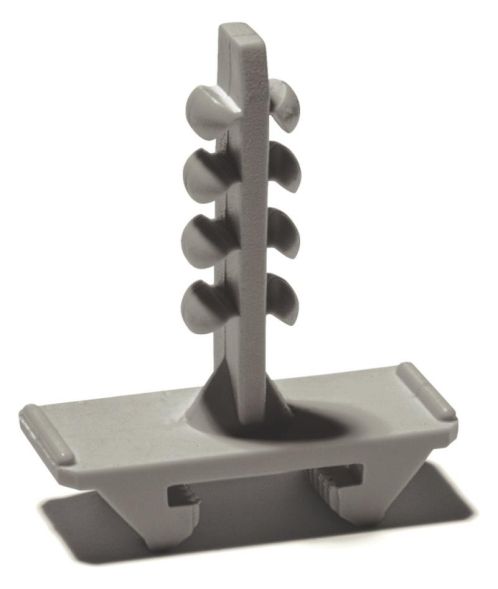

For pipe laying: the ESD is a *clip-on* for the EC Euro-Clip and is snapped onto it and inserted into a 6 mm drill hole, suitable for laying on plasterboard/Fermacell, concrete, limestone, brick or Ytong, or e.g. in the case of temporary construction using cable ties, a bundle of cables can also be attached, cable tie feedthrough up to max. 4.5 mm wide, for laying on plasterboard walls up to 30 mm and on Fermacell, the outside of the wall remains undamaged, dowel length 30 mm, the principle of the Schnabl plug-in technology is based on the patented Euro plug-in dowel - dowels and screws are not required, the ESD is simply inserted into a 6 mm drill hole - without tools and with little effort. Eccentric pairs are arranged on the plastic shaft - these expansion bodies form a force-locking connection with the drill hole wall, the holding force increases with increasing load. Disassembly is done by simply unscrewing, grey, halogen-free, PA 6, UV-stabilised, temperature range: -20 degrees C to +85 degrees C, silicone-free
