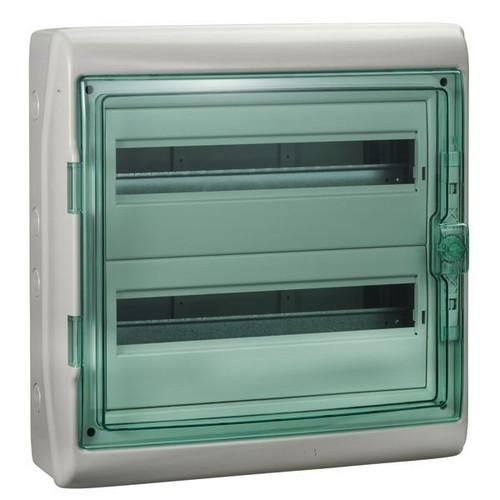

Kaedra small distribution board. 2 horizontal rows with 18 modules each. Standard: EN 60439-3, protection class: IP 65, protection class against external mechanical stress IK 09, glow wire test: 650°C, color: housing RAL 7035, hinged lid: light green. Housing with PE/N terminals, several housings can be combined horizontally and vertically using M32 mounting brackets, depth of the DIN rail adjustable, center distance between 2 DIN rails can be set to 125, 150 or 175 mm (factory setting: 150 mm).
| Property | Value |
| Height: | 460.0 mm |
| Width: | 448.0 mm |
| Depth: | 160.0 mm |
| Width in HP: | 18.0 |
| Rows: | 2.0 |
| Protection class (IP): | IP65 |
| Color: | gray |
| Mounting type: | Surface-mounted |
| With lock: | no |
| Transparent cover/door: | yes |
| Housing material: | Plastic |
| RAL number: | 7035.0 |
| DIN rail: | yes |
| Mounting option: | yes |
| EMC version: | no |
| With mounting plate: | no |
| Type of cover: | door |
| Cover design: | closed |
| Inner depth: | 88.0 mm |
| Type of closure: | cylinder |
| Earthing terminal block: | yes |
| Neutral conductor terminal block: | yes |
| Signal-permeable door: | yes |
Features
HAB
13434
Manufacturer
HAN
13434
GTIN
3303430134343
Cultivation option
Yes
Type of cover
Door
Type of closure
Cylinder
Cover design
Closed
Width
448.0 mm
DIN rail
Yes
EMC version
No
Color
Height
460.0 mm
Internal depth
88.0 mm
With mounting plate
No
With lock
No
Mounting type
Surface-mounted
RAL number
7035.0
IP protection)
IP65
Depth
160.0 mm
Transparent lid/door
Yes
Housing material
Plastic
