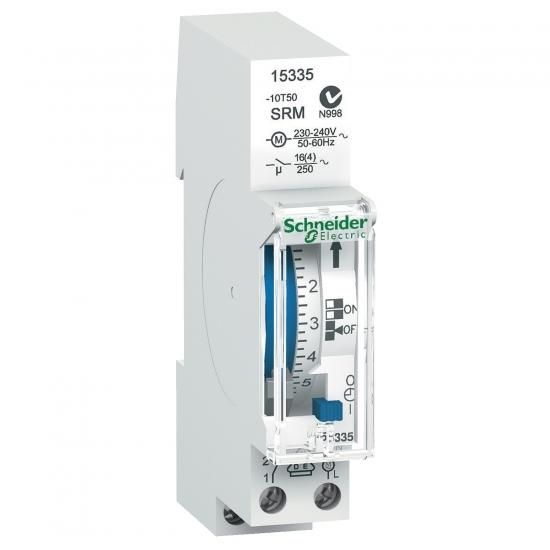

Mechanical timer IH24h 1c SRM, 1 TE, 24 hrs. 1 channel - without reserve, protection class IP20B, service life 10 years
| Property | Value |
| Width in division units: | 1.0 |
| Number of channels: | 1.0 |
| Protection class (IP): | IP20 |
| 24 h program: | yes |
| Suitable for manual operation: | yes |
| Supply voltage: | 230.0 V |
| Mounting type: | DIN rail |
| Type of supply voltage: | AC |
| Frequency of supply voltage: | 50.0 Hz |
| Shortest switching time channel 1: | 15.0 min |
| Contact design: | Opener |
| Power reserve in hours: | 0.0 |
| Mains synchronous: | no |
| Weekly program: | no |
| Nominal switching current at 250 V AC: | 16.0 A |
| Annual program: | no |
| Quartz-controlled: | no |
| Automatic summer/winter time change: | no |
| Height: | 90.0 mm |
| Width: | 18.0 mm |
| Depth: | 66.0 mm |
| Program disk division 1: | 15.0 min |
| Switching preselection: | yes |
| Potential-free switching contact: | yes |
| 60 min program: | no |
Features
Type of voltage of the supply voltage
AC
Supply voltage
230.0 V
Number of channels
1.0
HAB
15335
Manufacturer
HAN
15335
GTIN
3303430153351
Width
18.0 mm
Width in pitch units
1.0
Height
90.0 mm
Mounting type
DIN rail
IP protection)
IP20
Depth
66.0 mm
Supply voltage
230.0V
