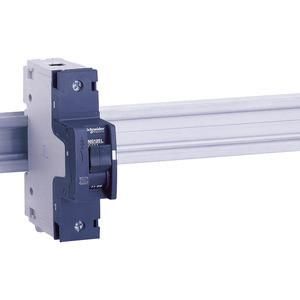

Circuit breaker NG125L, 1P, 25A, B-characteristic. Product range: NG125 - Range: Acti 9 - Product or component type: Circuit breaker - Device short name: NG125L - Network type: AC, DC - Trip unit technology: thermomagnetic - Interrupting capacity: 100 kA Icu according to EN/IEC 60947-2 - 110-130V AC 50/60 Hz, 12.5 kA Icu according to EN/IEC 60947-2 - 380-415V AC 50/60 Hz, 36 kA Icu according to EN/IEC 60947-2 - 144V DC, 50 kA Icu according to EN/IEC 60947-2 - 12V DC, 50 kA Icu according to EN/IEC 60947-2 - 125V DC, 50 kA Icu according to EN/IEC 60947-2 - 220-240V AC 50/60 Hz.
| Property | Value |
| Tripping characteristic: | B |
| Rated current: | 25.0 A |
| Rated voltage: | 400.0 V |
| Type of voltage: | AC/DC |
| Frequency: | 50.0 to 60.0 Hz |
| TE: | 1.5 |
| Number of poles (total): | 1.0 |
| Additional equipment possible: | yes |
| Overvoltage category: | 4.0 |
| Installation depth: | 47.0 mm |
| Protection class (IP): | IP20 |
| Rated switching capacity Icu according to IEC 60947-2 at 230 V: | 50.0 kA |
| Rated switching capacity Icu according to IEC 60947-2 at 400 V: | 12.5 kA |
| Pollution level: | 3.0 |
| Switching neutral conductor: | no |
| Number of protected poles: | 1.0 |
| Flush-mounted installation: | no |
| Rated insulation voltage Ui: | 690.0 V |
| Rated impulse withstand voltage Uimp: | 8.0 kV |
| Ambient temperature during operation: | -30.0 to 70.0 °C |
| Connectable conductor cross-section, stranded: | 1.0 to 35.0 mm² |
| Connectable conductor cross-section, single-wire: | 1.5 to 50.0 mm² |
| Explosion-proof: | no |
Features
Flush-mounted installation
No
HAB
18744
Manufacturer
HAN
18744
GTIN
3303430187448
Connectable conductor cross-section solid
1.5 to 50.0 mm²
Connectable conductor cross-section stranded
1.0 to 35.0 mm²
Number of protected poles
1.0
Trigger characteristics
B
Rated insulation voltage Ui
690.0V
Rated switching capacity Icu according to IEC 60947-2 at 230 V
50.0kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V
12.5kA
Rated voltage
400.0V
Rated impulse withstand voltage Uimp
8.0kV
Rated current
25.0A
Installation depth
47.0 mm
Explosion-proof
No
Frequency
50.0 to 60.0 Hz
Switching neutral conductor
No
Number of poles (total)
1.0
IP protection)
IP20
Voltage type
AC/DC
TE
1.5
Ambient temperature during operation
-30.0 to 70.0 °C
Degree of contamination
3.0
Additional equipment possible
Yes
Overvoltage category
4.0
