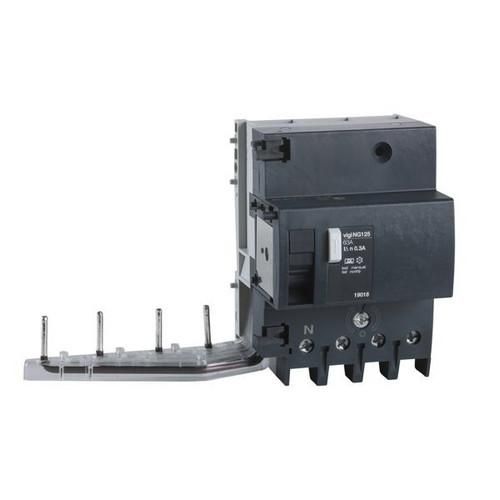

Residual current block Vigi NG125, 4P, 63A, 300mA, type A, selective. Product or component type: Earth fault auxiliary block - Device short name: Vigi NG125 - Poles description: 4P - Network type: AC - Network frequency: 50/60 Hz - Earth fault sensitivity: 300 mA - Earth fault protection time delay: selective - Earth fault protection class: Class A.
| Property | Value |
| Max. Delay time: | 0.0 ms |
| Nominal voltage: | 230.0 to 415.0 V |
| Delay time adjustable: | no |
| Rated residual current adjustable: | no |
| Nominal current: | 63.0 A |
| Residual current type: | A |
| Number of poles: | 4.0 |
| Rated residual current: | 0.3 A |
| Surge current strength: | 5.0 kA |
| Frequency: | 50/60 Hz |
| Rated insulation voltage Ui: | 690.0 V |
| Rated impulse voltage strength Uimp: | 8.0 kV |
| Connectable conductor cross-section, single-wire: | 1.5 to 50.0 mm² |
| Connectable conductor cross-section, multi-wire: | 1.0 to 35.0 mm² |
| False trigger protection: | no |
| With locking device: | yes |
| Protection class (IP): | IP20 |
| Pollution level: | 3.0 |
| Ambient temperature during operation: | -25.0 to 60.0 °C |
Features
HAB
19034
Manufacturer
HAN
19034
GTIN
3303430190349
Connectable conductor cross-section solid
1.5 to 50.0 mm²
Connectable conductor cross-section stranded
1.0 to 35.0 mm²
Rated residual current
0.3A
Rated insulation voltage Ui
690.0V
Rated impulse withstand voltage Uimp
8.0kV
False trigger protection
No
Residual current type
A
Frequency
50/60Hz
With locking device
Yes
Nominal voltage
230.0 to 415.0 V
Rated current
63.0A
Number of poles
4.0
IP protection)
IP20
Surge current strength
5.0kA
Ambient temperature during operation
-25.0 to 60.0 °C
Degree of contamination
3.0
