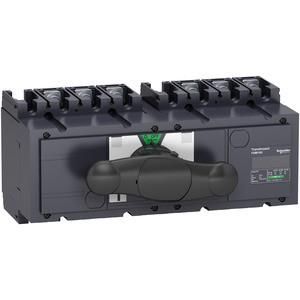

Manual source switch, Interpact INS250, 3p, 160A. Product series: INS250 - Series: Compact - Device abbreviation: INS250 - Description of poles: 3P - Network connection: AC, DC - Network frequency: 50/60 Hz - Mounting variant: fixed - Connection on the top: front - Connection on the bottom: front - Plus contact indicator: yes - Nominal short-circuit breaking capacity. Icm: 330 kA 690 V AC 50/60 Hz with upstream protective disconnector, 30 kA 690 V AC 50/60 Hz disconnector alone.
| Property | Value |
| Design: | On/off switch |
| Number of poles: | 3.0 |
| Rated continuous current Iu: | 160.0 A |
| Complete device in housing: | yes |
| With zero setting: | yes |
| Design of the Actuating element: | long rotary handle |
| Connection type main circuit: | screw connection |
| Suitable for intermediate installation: | no |
| Suitable for front mounting: | no |
| Suitable for distribution board installation: | no |
| Suitable for floor mounting: | no |
| Protection class (IP), front: | IP40 |
| Number of auxiliary contacts as normally closed contacts: | 0.0 |
| Number of auxiliary contacts as changeover contacts: | 0.0 |
| Number of auxiliary contacts as normally open contacts: | 0.0 |
| With return to zero position: | no |
Features
Number of auxiliary contacts as changeover contacts
0.0
HAB
31144 INS 250-160A 3P
Manufacturer
HAN
31144
GTIN
3303430311447
Connection type main circuit
Screw connection
Number of auxiliary contacts as normally open
0.0
Number of auxiliary contacts as normally closed
0.0
Version
On/off switch
Design of the actuating element
Long rotary handle
Rated continuous current Iu
160.0A
Suitable for floor mounting
No
Suitable for front mounting
No
Suitable for distribution board installation
No
Suitable for intermediate construction
No
Complete device in housing
Yes
With zero setting
Yes
With retraction to zero position
No
Number of poles
3.0
Protection class (IP), front
IP40
