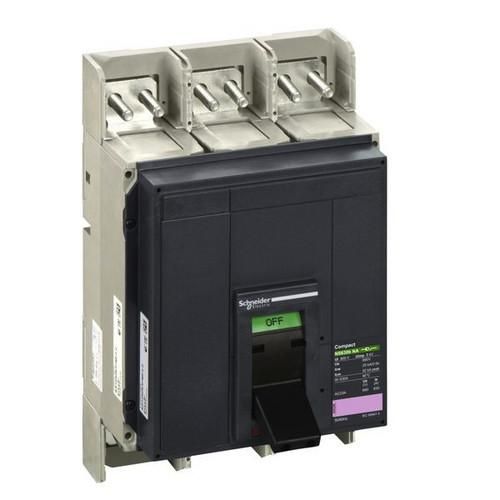

This is a Compact NS630b-1600, 800A, 70kA@415 VAC, 3-pole base frame.
| Feature | Value |
| Rated continuous current Iu: | 800.0 A |
| Connection type main circuit: | Bolt connection |
| Number of poles: | 3.0 |
| Auxiliary normally open contact: | 0.0 |
| Auxiliary normally closed contact: | 0.0 |
| Device design: | Built-in device, plug-in technology |
| Position of the connection for the main circuit: | front |
| Protection class (IP): | IP30 |
| Rated voltage: | 690.0 V |
| Icu at 400V: | 70.0 kA |
| Suitable for DIN rail mounting: | no |
| Design of the actuating element: | Toggle lever |
| With integrated Undervoltage release: | no |
| Integrated earth fault protection: | no |
| Motor drive integrated: | no |
| Motor drive optional: | no |
| With trip detector: | no |
| Number of auxiliary contacts as changeover contacts: | 0.0 |
| Complete device with protection unit: | no |
| DIN rail mounting optional: | no |
Features
Number of auxiliary contacts as changeover contacts
0.0
HAB
33331 NS800 H 3P basic housing insert
Manufacturer
HAN
33331
GTIN
3303430333319
Connection type main circuit
Bolt connection
Design of the actuating element
Rocker arm
Rated continuous current Iu
800.0A
Rated voltage
690.0V
Suitable for DIN rail mounting
No
Device type
Built-in device slide-in technology
DIN rail mounting optional
No
Integrated earth fault protection
No
Complete device with protection unit
No
With trip detector
No
With integrated undervoltage release
No
Motor drive integrated
No
Motor drive optional
No
Number of poles
3.0
Position of the connection for main circuit
In front
IP protection)
IP30
