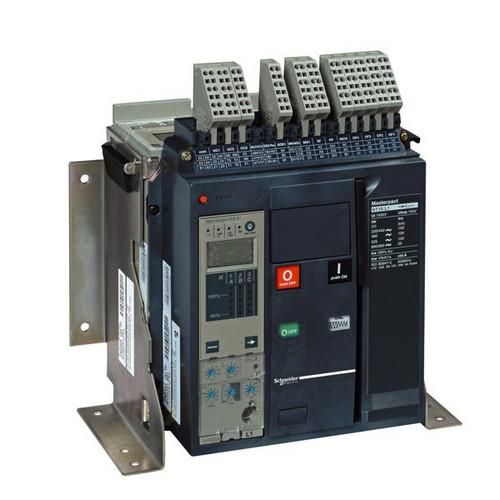

Masterpact NT10H1, 3 P, 1000A, max. breaking capacity 42kA. Product series: Masterpact NT - Product or component type: Base frame - Device short name: Masterpact NT10 - Circuit breaker name: Masterpact NT10 - Network connection: AC - Circuit breaker performance index: H1 - Usage category: Category B.
| Property | Value |
| Rated continuous current Iu: | 1000.0 A |
| Rail connection | |
| Number of poles: | 3.0 |
| Normally open auxiliary circuit: | 0.0 |
| Normally open auxiliary circuit: | 0.0 |
| Device design: | Built-in device, plug-in technology |
| Position of the connection for the main circuit:< /td> | rear |
| Protection class (IP): | IP30 |
| Rated voltage: | 690.0 V |
| Icu at 400V: | 42.0 kA |
| Suitable for DIN rail mounting: | no |
| Design of the actuating element: | Push button |
| Integrated earth fault protection: | no |
| Integrated motor drive: | no |
| Motor drive optional: | yes |
| With trip detector: | no |
| Number of auxiliary contacts as changeover contacts: | 5.0 |
Features
Number of auxiliary contacts as changeover contacts
5.0
HAB
47220 NT10H13P slot
Manufacturer
HAN
47220
GTIN
3303430472209
Connection type main circuit
Rail connection
Design of the actuating element
Push button
Rated continuous current Iu
1000.0A
Rated voltage
690.0V
Suitable for DIN rail mounting
No
Device type
Built-in device slide-in technology
Integrated earth fault protection
No
With trip detector
No
Motor drive integrated
No
Motor drive optional
Yes
Number of poles
3.0
Position of the connection for main circuit
Rear
IP protection)
IP30
