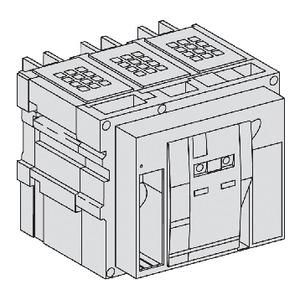

Masterpact NW10L1, 3 P, 1000A, max. breaking capacity 150kA. Product series: Masterpact NW - Product or component type: Base frame - Short name of the device: Masterpact NW10 - Circuit breaker designation: Masterpact NW10 - Network connection: AC - Circuit breaker performance index: L1 - Usage category: Category B.
| Property | Value |
| Rated continuous current Iu: | 1000.0 A |
| Connection type main circuit: | Rail connection |
| Number of poles: | 3.0 |
| Auxiliary contact make: | 0.0 |
| Auxiliary contact break: | 0.0 |
| Device design: | Built-in device, slide-out technology |
| Position of the connection for the main circuit: | rear |
| Protection class (IP): | IP30 |
| Rated voltage: | 690.0 V |
| Icu at 400V: | 150.0 kA |
| Suitable for DIN rail mounting: | no |
| Design of the actuating element: | Push button |
| Integrated earth fault protection: | no |
| Motor drive integrated: | no |
| Motor drive optional: | yes |
| With trip detector: | no |
| Number of auxiliary contacts as changeover contacts: | 5.0 |
Features
Number of auxiliary contacts as changeover contacts
5.0
HAB
48247 NW 10 L1 3P insert
Manufacturer
HAN
48247
GTIN
3303430482475
Connection type main circuit
Rail connection
Design of the actuating element
Push button
Rated continuous current Iu
1000.0A
Rated voltage
690.0V
Suitable for DIN rail mounting
No
Device type
Built-in device slide-in technology
Integrated earth fault protection
No
With trip detector
No
Motor drive integrated
No
Motor drive optional
Yes
Number of poles
3.0
Position of the connection for main circuit
Rear
IP protection)
IP30
