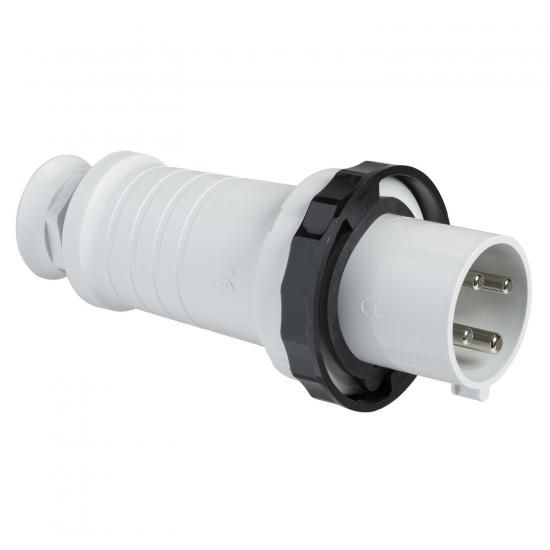

CEE plug, screw terminals, 63A, 3p+E, 480-500 V AC, IP67. Product or component type: Plug - Device short name: PratiKa plug - Plug/socket category: Low voltage - Pole description: 3P+E - Network connection: AC - Output standard: industrial.
| Property | Value |
| IEC current: | 63.0 A |
| Number of poles: | 3.0 |
| Voltage according to EN 60309-2: | 500 V (50+60 Hz) black |
| Current according to UL/CSA (if UL version required): | 0.0 A |
| Identification color: | black |
| Phase inverter: | no |
| Protection class (IP): | IP67 |
| Connection technology: | screw terminal |
| Cable entry: | screw connection |
| Plug direction: | straight |
| Time position: | 7.0 h |
| Material: | plastic |
| Military version: | no |
| RAL number: | 0.0 |
| Contact material: | CuZn |
| Surface treatment of contacts: | nickel-plated |
Features
Phase inverter
No
HAB
81385
Manufacturer
HAN
81385
GTIN
3303430813859
Connection technology
Screw terminal
IEC current
63.0A
Cable entry
Screw connection
Identification color
Black
Military version
No
Number of poles
3.0
RAL number
0.0
IP protection)
IP67
Voltage according to EN 60309-2
500 V (50+60 Hz) black
Plug direction
Straight
Time position
7.0 hrs
Material
Plastic
