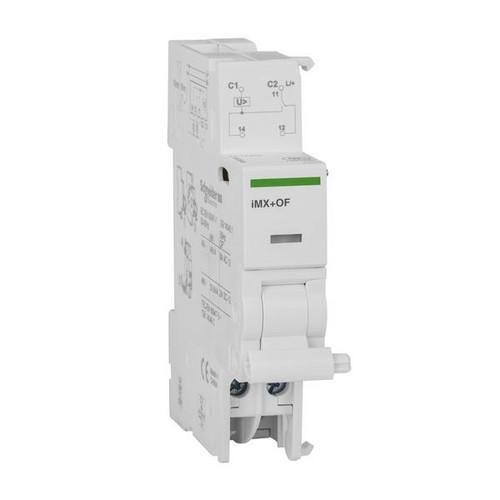

Shunt release iMX+OF, 48V AC/DC. Series: Acti 9 - Product or component type: Shunt release with auxiliary switch O+F - Device short name: iMX+OF - Rated operating current Ie: AC-12 : 2 Aat 48V AC - 50 Hz, DC-12 : 2 Aat 48V DC - Control circuit voltage: 48V AC 50/60 Hz, 48V DC - Product compatibility: ARA, double terminal, single terminal, iC60, iDPN Vigi, iID, iSW-NA, RCA
| Feature | Value |
| Rated switching current: | 6.0 A |
| Rated voltage: | 48.0 V |
| Number of Fault signal switch: | 0.0 |
| Width in pitch units: | 1.0 |
| Device mounting: | Circuit breaker |
| Suitable for max. number of poles of the main contact unit (total): | 4.0 |
| Suitable for max. current of the main contact unit: | 63.0 A |
| Number of contacts as normally open: | 0.0 |
| Number of contacts as normally closed: | 0.0 |
| Number of contacts as Changer: | 1.0 |
Features
HAB
A9A26947 IMX+OF 48VAC
Manufacturer
HAN
A9A26947
GTIN
3606480087967
Number of contacts as normally open
0.0
Number of contacts as changeover
1.0
Number of contacts as opener
0.0
Rated voltage
48.0V
Width in pitch units
1.0
