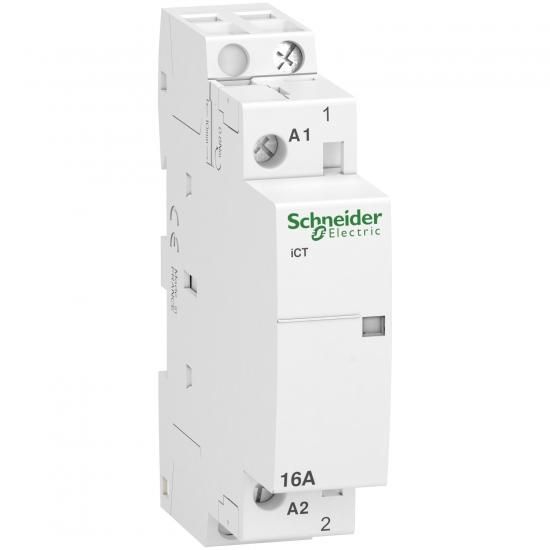

Installation contactor iCT 16A 1S 230/240V 50Hz. Contactor application: Motor - Heating - Lighting - Product range: iCT - Product or component type: Contactor - Short name of the device: iCT - Description of poles: 1P - Network type: AC - Usage category: AC-1 according to EN 60947-4-1, AC -3 according to EN 60947-4-1, AC-5A according to EN 60947-4-1, AC-5B according to EN 60947-4-1, AC-7A according to EN 61095, AC-7A according to IEC 1095, AC-7B according to EN 61095, AC-7B according to IEC 1095 - Control type: Remote control
| Property | Value |
| Voltage type the operating voltage: | AC |
| Protection class (IP): | IP20 |
| TE: | 1.0 |
| Power P: | 2000.0 W |
| Current I: | 16.0 A |
| 250.0 V | |
| Max. fluorescent lamp load (parallel compensated): | 800.0 VA |
| Max. fluorescent lamp load (duo circuit): | 1500.0 VA |
| Max. Fluorescent lamp load: | 850.0 VA |
| Additional equipment possible: | yes |
| Slider for manual switching: | no |
| Voltage type: | AC |
| Installation depth: | 43.5 mm |
| Rated operating voltage: | 230.0 to 240.0 V |
| 1.0 | |
| Normally open: | 0.0 |
Features
Voltage
250.0 V
Max. fluorescent lamp load
850.0 VA
HAB
A9C22711 ICT 1S 16A 230-240VAC
Manufacturer
HAN
A9C22711
GTIN
3606480088643
Installation depth
43.5 mm
IP protection)
IP20
Voltage type
AC
TE
1.0
Additional equipment possible
Yes
