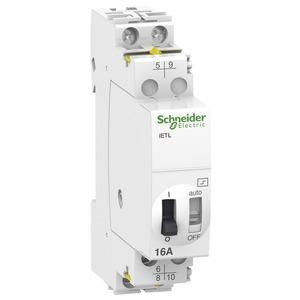

Extension iETL iTL 16- 2P, 1W+1S -16A, coil 110VDC, 230-240V AC 50/60Hz. Relay application: Remote control - Product range: iTL - Product or component type: Expansion module for pulse relay - Device short name: iETL iTL 16 - Description of poles: 2P - Quantity of pole contacts: 1 C/O + 1 S - Network type: AC
| Property | Value |
| Mounting type: | DIN rail |
| Rated current: | 16.0 A |
| Control voltage type: | AC |
| Control voltage: | 230.0 to 240.0 V |
| Max. Fluorescent lamp load: | 1300.0 VA |
| Max. switching current (cos phi = 0.6): | 16.0 A |
| Installation depth: | 84.0 mm |
| Function: | mechanical |
| Width in modular spaces: | 1.0 |
| Max. incandescent lamp load: | 1600.0 W |
| Max. Fluorescent lamp load (parallel compensated): | 900.0 VA |
| Max. Fluorescent lamp load (duo circuit): | 2000.0 VA |
| Supply voltage: | 24.0 to 250.0 V |
| Frequency of control voltage 1: | 50.0 to 60.0 Hz |
| Control voltage 2: | 110.0 V |
| Control voltage type 2: | DC |
| Voltage type of supply voltage: | AC |
| Number of contacts as normally open: | 1.0 |
| Number of contacts as normally closed: | 0.0 |
| Number of contacts as changeover: | 1.0 |
Features
Type of voltage of the supply voltage
AC
Supply voltage
24.0 to 250.0 V
Max. fluorescent lamp load
1300.0 VA
HAB
A9C32816 IETL16A for TL230-240VAC
Manufacturer
HAN
A9C32816
GTIN
3606480091926
Number of contacts as normally open
1.0
Number of contacts as changeover
1.0
Number of contacts as opener
0.0
Rated current
16.0A
Width in pitch units
1.0
Installation depth
84.0 mm
Function
Mechanically
Mounting type
DIN rail
Supply voltage
24.0 to 250.0 V
