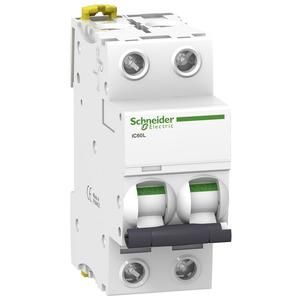

Miniature circuit breaker Acti 9 iC60L with breaking capacity of 25kA according to IEC/EN 60947-2, 2-pole 10A characteristic Z. With mechanical fault indicator on the front to indicate trips due to overload and short circuit. Color RAL 9003. Single connection terminal for cable and pin comb bar on the top and bottom of the device. Movable insulation cover. Rear top hat rail fastening element on the top and bottom of the device.
| Property | Value |
| Triggering characteristic: | Z |
| Rated current: | 10.0 A |
| Rated voltage: | 400.0 V |
| Type of voltage: | AC/DC |
| Frequency: | 50.0 to 60.0 Hz |
| TE: | 2.0 |
| Number of poles (total): | 2.0 |
| Energy limitation class: | 3.0 |
| Additional equipment possible: | yes |
| Overvoltage category: | 4.0 |
| Installation depth: | 44.5 mm |
| Protection class (IP): | IP20 |
| Rated switching capacity Icn according to EN 60898 at 230 V: | 15.0 kA |
| Rated switching capacity Icu according to IEC 60947-2 at 230 V: | 50.0 kA |
| Rated switching capacity Icu according to IEC 60947-2 at 400 V: | 25.0 kA |
| Rated switching capacity Icn according to EN 60898 at 400 V: | 15.0 kA |
| Pollution level: | 3.0 |
| Switching neutral conductor: | no |
| Number of protected poles: | 2.0 |
| Flush-mounted installation: | no |
| Rated insulation voltage Ui: | 500.0 V |
| Rated impulse withstand voltage Uimp: | 6.0 kV |
| Ambient temperature during operation: | -35.0 to 70.0 °C |
| Connectable conductor cross-section, stranded: | 1.0 to 16.0 mm² |
| Connectable conductor cross-section, single-wire: | 1.0 to 25.0 mm² |
| Explosion-proof: | no |
Features
Flush-mounted installation
No
HAB
A9F92210 IC60L 2-pin Z10A
Manufacturer
HAN
A9F92210
GTIN
3606480085512
Connectable conductor cross-section solid
1.0 to 25.0 mm²
Connectable conductor cross-section stranded
1.0 to 16.0 mm²
Number of protected poles
2.0
Trigger characteristics
Z
Rated insulation voltage Ui
500.0V
Rated switching capacity Icn according to EN 60898 at 230 V
15.0kA
Rated switching capacity Icn according to EN 60898 at 400 V
15.0kA
Rated switching capacity Icu according to IEC 60947-2 at 230 V
50.0kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V
25.0kA
Rated voltage
400.0V
Rated impulse withstand voltage Uimp
6.0kV
Rated current
10.0A
Installation depth
44.5 mm
Energy limitation class
3.0
Explosion-proof
No
Frequency
50.0 to 60.0 Hz
Switching neutral conductor
No
Number of poles (total)
2.0
IP protection)
IP20
Voltage type
AC/DC
TE
2.0
Ambient temperature during operation
-35.0 to 70.0 °C
Degree of contamination
3.0
Additional equipment possible
Yes
Overvoltage category
4.0
