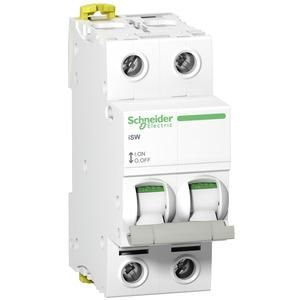

Switch disconnector iSW, 2P, 40A, 240V AC. Series: Acti 9 - Short name of the device: iSW - Switch application: Switching (opening and closing of circuits under load), disconnecting of circuits.
| Property | Value |
| Number of poles: | 2.0 |
| Rated current: | 40.0 A< /td> |
| Rated voltage: | 240.0 V |
| TE: | 2.0 |
| Switching function: | Off switch |
| With signal lamp: | no |
| Voltage type: | AC |
| Colour of the cap: | grey |
| Protection class (IP): | IP20 |
| Min. Rated voltage: | 415.0 V |
| Rated breaking capacity: | 5.0 kA |
| Short circuit strength (Icw): | 1.26 kA |
| Installation depth: | 75.5 mm |
| Normally open: | 2.0 |
| Normally open: | 0.0 |
| Changer: | 0.0 |
| Print/marking: | other |
| Forced separation according to DIN VDE 0113: | yes |
Features
Color of the cap
Gray
Rated breaking capacity
5.0 kA
Min. rated voltage
415.0 V
HAB
A9S65240 ISW 2-pole 40A
Manufacturer
HAN
A9S65240
GTIN
3606480531057
Printing/marking
Other
Rated voltage
240.0V
Rated current
40.0A
Installation depth
75.5 mm
Short circuit strength (Icw)
1.26kA
With signal lamp
No
Number of poles
2.0
Switching function
Off switch
IP protection)
IP20
Voltage type
AC
TE
2.0
