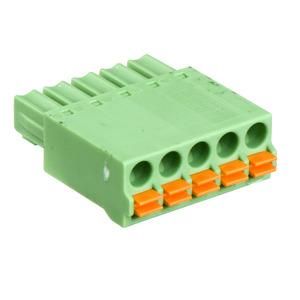

Accessories Acti 9 Smartlink. 5-pin connector (Ti24) for free wiring. VPE 12. Data transfer between the Smartlink and Acti 9 devices such as circuit breakers, residual current circuit breakers, residual current devices.
| Property | Value |
| Number of poles: | 5.0 |
| Rated current In: | 8.0 A |
| Rated impulse voltage: | 2.5 kV |
| With protective conductor: | no |
| Conductor cross-section: | 0.5 to 1.5 mm² |
| Material of the Connector insert: | Thermoplastic |
| Rated voltage: | 24.0 V |
| Overvoltage category: | III |
| Ambient temperature: | 0.0 to 60.0 °C |
| Contact design: | Pin |
| Diameter of plug contact: | 2.2 mm |
| Pollution level: | 2 |
| Material of contact: | Nickel |
| QS single-wire: | 0.5 to 1.5 mm² |
| QS wire end ferrule: | 0.25 to 0.75 mm² |
| QS fine-wire: | 0.25 to 1.5 mm² |
| Contact insert without contacts: | no |
| Connection type: | Spring-loaded connection |
| With wire protection: | yes |
| Flammability class of the insulating material according to UL94: | V0 |
| Number of power contacts: | 0.0 |
| Number of control contacts: | 5.0 |
| Operating temperature: | 0.0 to 65.0 °C |
| Min. number of mating cycles: | 100.0 |
| Width: | 19.54 mm |
| Height: | 7.8 mm |
| Depth: | 22.9 mm |
Features
Rated surge voltage
2.5 kV
HAB
A9XC2412 TI24 (12pcs)
Manufacturer
HAN
A9XC2412
GTIN
3606480437274
Connection type
Spring-loaded connection
Rated voltage
24.0V
Rated current In
8.0A
Operating temperatur
0.0 to 65.0 °C
Width
19.54 mm
Height
7.8 mm
Conductor cross-section
0.5 to 1.5 mm²
Number of poles
5.0
Depth
22.9 mm
Ambient temperature
0.0 to 60.0 °C
Degree of contamination
2
Overvoltage category
III
