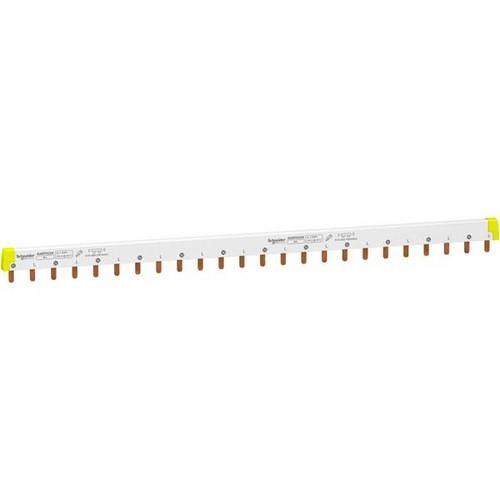

Phase rail bar, can be cut to length, 2P, 24 TE, 100A. Series: Linergy - Product name: FH - Product or component type: Busbar - Accessory/part category: Connection accessories - Description of poles: 2P - Distance between poles: 18 mm - Marking: N L.
| Property | Value |
| Number of poles: | 2.0 |
| Number of phases: | 1.0 |
| Length: | 430.0 mm |
| Cross section: | 16.0 mm² |
| Rated continuous current Iu: | 100.0 A |
| Max. rated operating voltage Ue: | 415.0 V |
| TE: | 24.0 |
| Insulated: | yes |
| Suitable for number of devices: | 12.0 |
| Suitable for devices with N conductor: | yes |
| Pitch: | 18.0 mm |
| Suitable for devices with auxiliary switch: | yes |
| Design of the electrical connection: | Pen |
| Color: | white |
Features
Suitable for devices with auxiliary switch
Yes
Suitable for devices with N conductor
Yes
Suitable for number of devices
12.0
Pitch dimension
18.0 mm
HAB
A9XPH224 bridge 2-pole 24MOD. 100A
Manufacturer
HAN
A9XPH224
GTIN
3606480485039
Number of phases
1.0
Design of the electrical connection
Pen
Rated continuous current Iu
100.0A
Color
Isolated
Yes
Length
430.0 mm
Max. rated operating voltage Ue
415.0V
Number of poles
2.0
Cross-section
16.0 mm²
TE
24.0
