This transformer has a bridge rectifier with downstream filtering for 24 VDC / 30 A. The output voltage is therefore not regulated and depends on both the input voltage and the connected load. The input side is connected to a 3-phase network with a nominal voltage of 400 VAC. In addition, connections are available for adjustment of +/-20 VAC. The mains frequency range is 50/60 Hz.
| Property | Value |
| Performance Level according to EN ISO 13849-1: | without |
| 1. Output voltage: | 24.0 V |
| Type of supply voltage: | AC/DC |
| Max. Output current 1: | 20.0 A |
| Output voltage adjustable: | no |
| Rated supply voltage AC 50 Hz: | 400.0 V |
| Rated supply voltage AC 60 Hz: | 400.0 V |
| Short-circuit proof: | yes |
| Stabilized: | no |
| Suitable for safety functions: | yes |
| Direct mounting possible: | no |
| Design of the electrical connection: | screw connection |
| Output voltage regulated: | yes |
| Power: | 720.0 W |
| Suitable for series installation: | no |
| Rail mounting possible: | no |
| Wall mounting possible: | yes |
| Protection class (IP): | IP20 |
| Width: | 240.0 mm |
| Height: | 252.0 mm |
| Depth: | 108.0 mm |
| Nominal output voltage 1: | 24.0 V |
| Nominal output current 1: | 30.0 A |
| SIL according to IEC 61508: | without |
Features
Type of voltage of the supply voltage
AC/DC
Short circuit proof
Yes
HAB

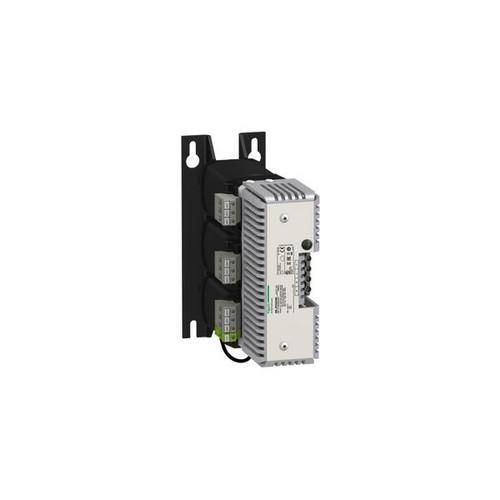

ABL8TEQ24300 Rectifier 3p 400V 24VDC 30A
Manufacturer
HAN
ABL8TEQ24300
GTIN
3389119401395
Design of the electrical connection
Screw connection
Width
240.0 mm
Suitable for series installation
No
Suitable for security functions
Yes
Height
252.0 mm
Performance
720.0W
Performance Level according to EN ISO 13849-1
Without
SIL according to IEC 61508
Without
IP protection)
IP20
Depth
108.0 mm
Mounting rail possible
No
