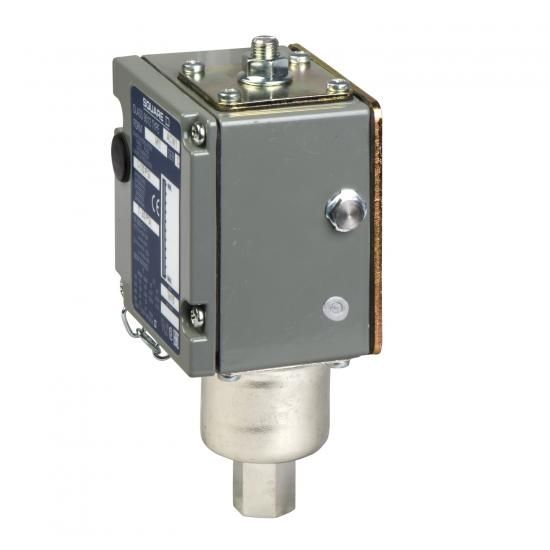

ACW1M119012 pressure switch manufacturer article number: ACW1M119012
| Property | Value |
| Initial value measuring range pressure: | 57000.0 Pa |
| Number of auxiliary contacts as normally closed: | 0.0 |
| Number of auxiliary contacts as normally open: | 0.0 |
| Number of auxiliary contacts as changeover: | 1.0 |
| Number of normally closed as main contacts: | 0.0 |
| Number of normally open contacts as main contacts: | 0.0 |
| Design of the electrical connection: | Screw connection |
| Switch-off pressure: | 0.07 to 7.6 bar |
| Rated operating voltage Ue at AC 50 Hz: | 24.0 to 500.0 V |
| Rated operating voltage Ue at AC 60 Hz: | 0.0 to 500.0 V |
| Rated operating voltage Ue at DC: | 24.0 to 600.0 V |
| Burst pressure: | 17.0 bar |
| Pressure switching difference: | 2.0 bar |
| Switch-on pressure: | 0.07 to 7.6 bar |
| Electronic version: | no |
| End value measuring range pressure: | 960000.0 Pa |
| Explosion-proof: | no |
| Suitable as a 2-point controller: | yes |
| Suitable as a limiter: | yes |
| Suitable as a guard: | yes |
| Max. Test pressure: | 2.0 bar |
| Medium temperature: | -73.0 to 125.0 °C |
| With manual operation: | no |
| Protection class (IP): | IP65/IP67 |
| Initial setting: | 35000.0 to 152000.0 hPa |
| Final setting: | 70.0 to 7600.0 hPa |
| Max. Working pressure: | 152000.0 hPa |
| With manual on/off switch: | no |
| Thread size: | other |
| With display: | no |
| Protection class (NEMA): | other |
| Height: | 167.0 mm |
| Width: | 88.0 mm |
| Depth: | 68.0 mm |
Features
Number of auxiliary contacts as changeover contacts
1.0
HAB
ACW1M119012
Manufacturer
HAN
ACW1M119012
GTIN
3389110878264
Number of auxiliary contacts as normally open
0.0
Number of auxiliary contacts as normally closed
0.0
Number of normally open contacts as main contacts
0.0
Design of the electrical connection
Screw connection
Width
88.0 mm
Explosion-proof
No
Height
167.0 mm
With display
No
IP protection)
IP65/IP67
Protection class (NEMA)
Other
Depth
68.0 mm
